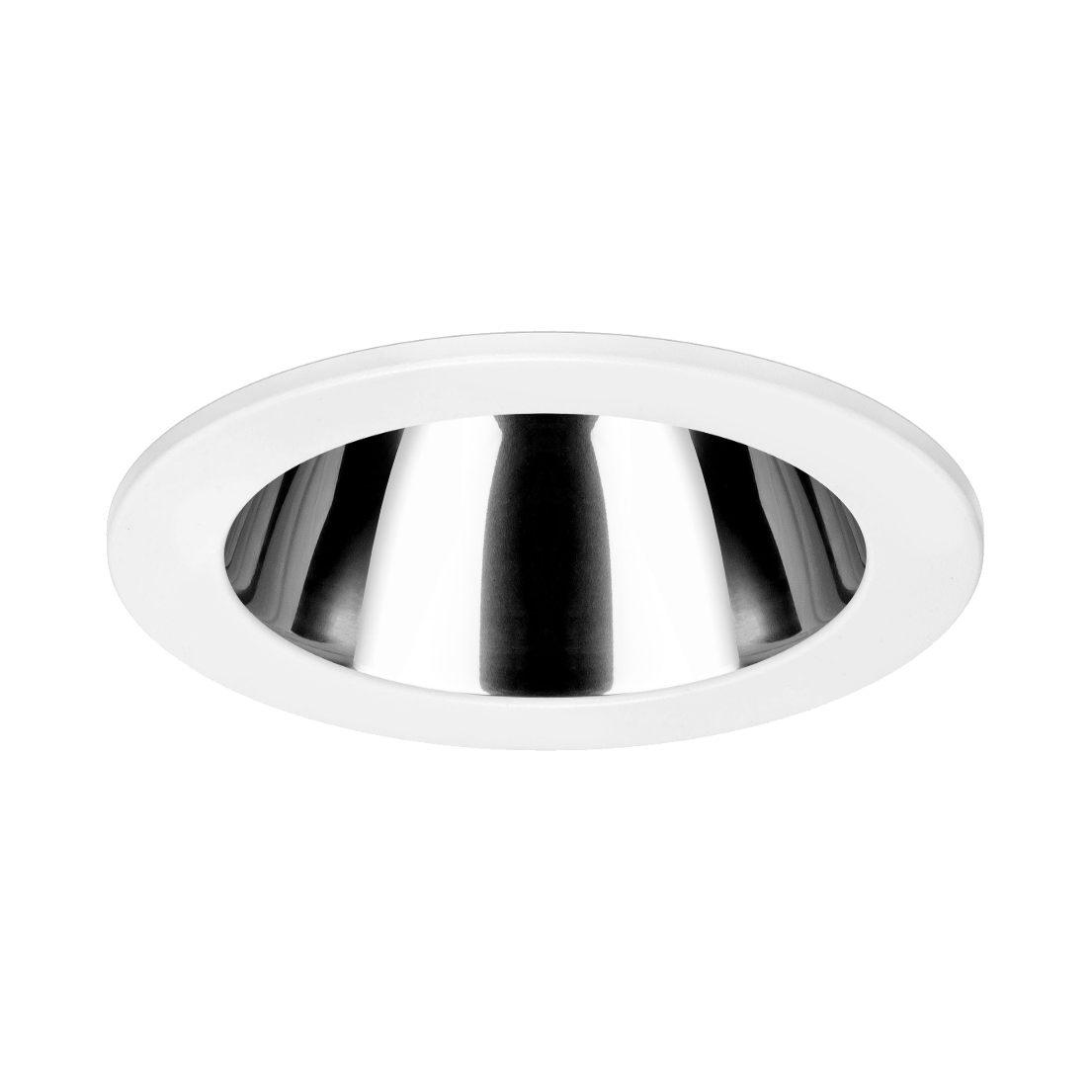

Circular down light manufactured primarily from die-cast Aluminium alloy and fabricated steel.

Available in 9.5W, 17.5W, 30W or 46.5W options.

Tridonic COB LED with optimised extruded Aluminium multi-finned heat sink.

Specular aluminium reflector with a 40° beam angle.

Removable die-cast front bezel rotates to secure and detach.

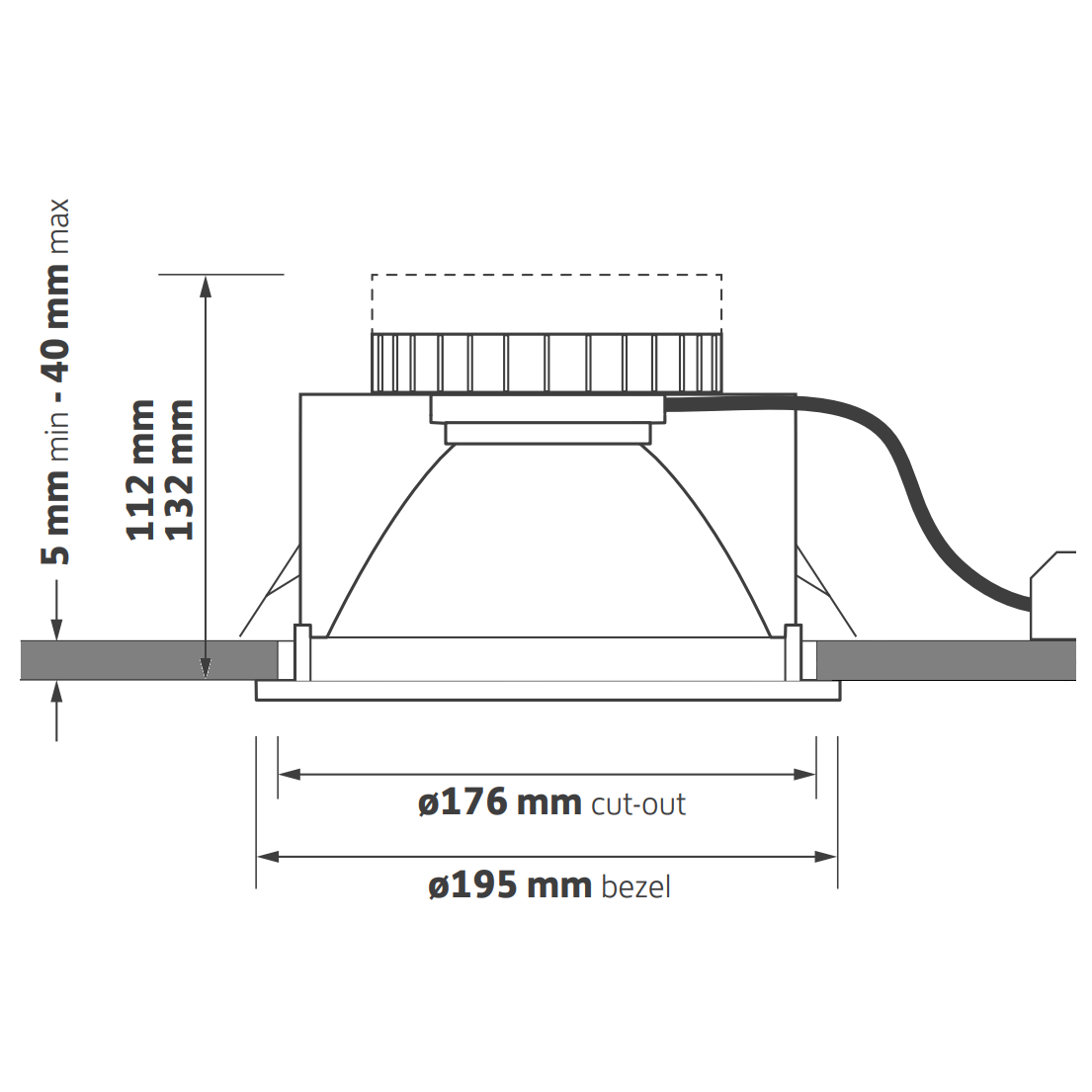

195mm diameter bezel and a maximum of 132mm deep.

Secured in to the ceiling using 4 ratchet spring steel clips for strength and stability.

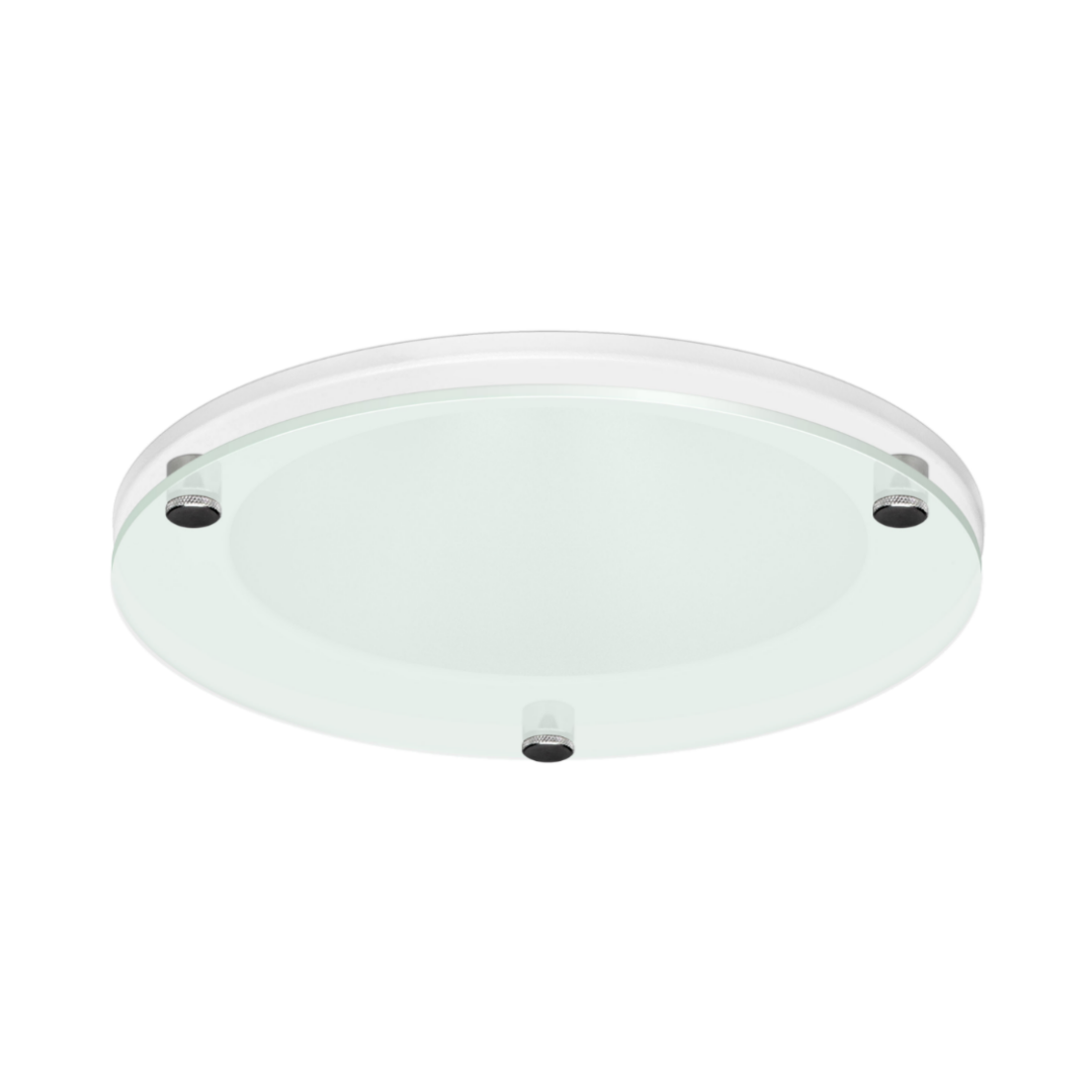

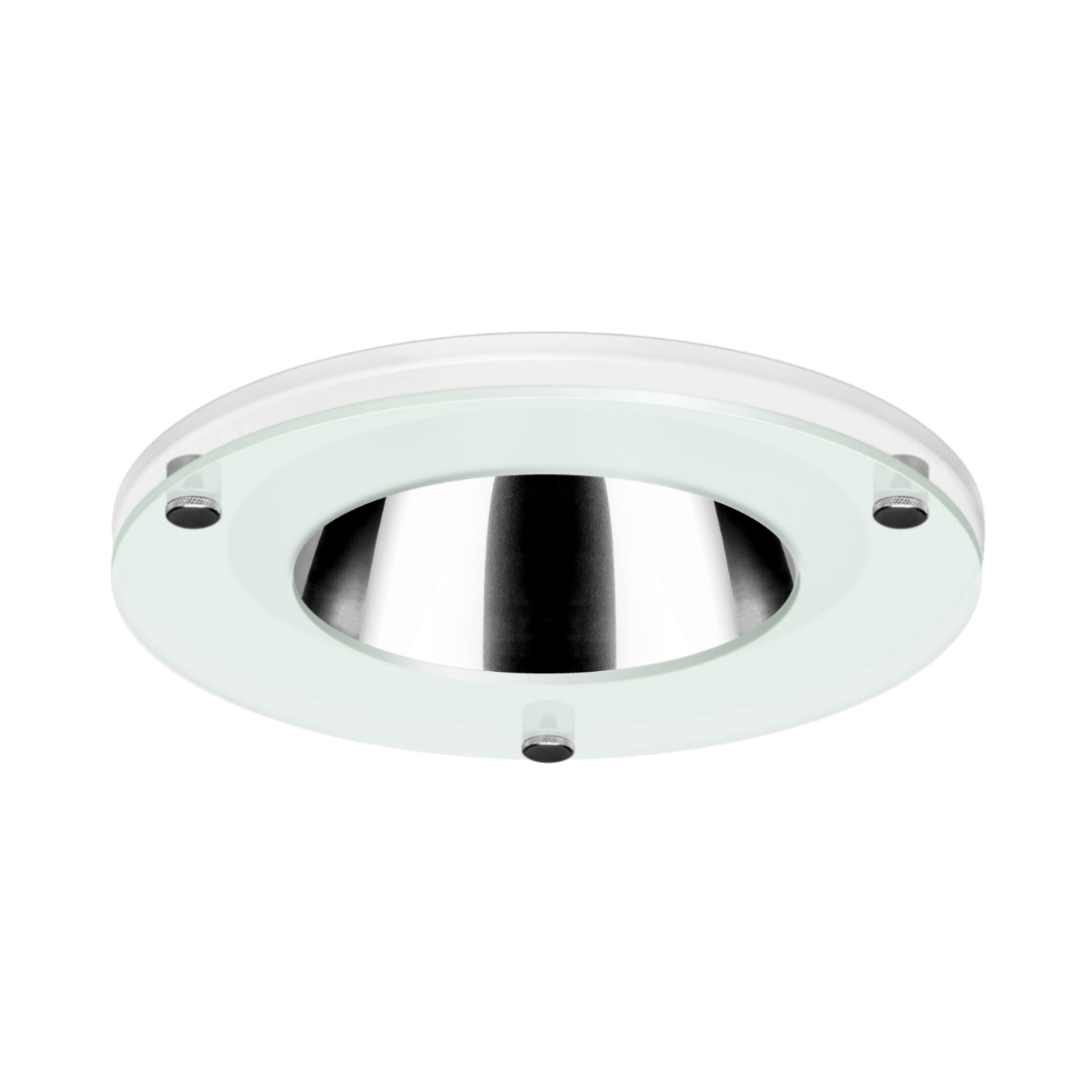

Decorative accessories available including various drop glass attachments.

IP ratings of IP54 and IP65 are offered for exterior and damp locations.

LED lumen package of 1,100 lumens (9.5W), 1,900 lumens (17.5W), 2,925 lumens (30.5W) and 4,550 lumens (46.5W) when choosing the 4000K colour option.

Efficacy in excess of 108 lumens per Watt (17.5W option) and a CRI>80 (CRI>90 also available) <3SDCM and with a rated lamp life of 70,000 hours.

Available in various colour temperatures.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

Installs in to plasterboard, or similar, ceilings.

Ceiling cut-out of 176mm diameter.

5 year parts warranty. .

Part Number:

CL01-0003 product part number creator
