CL01-0006

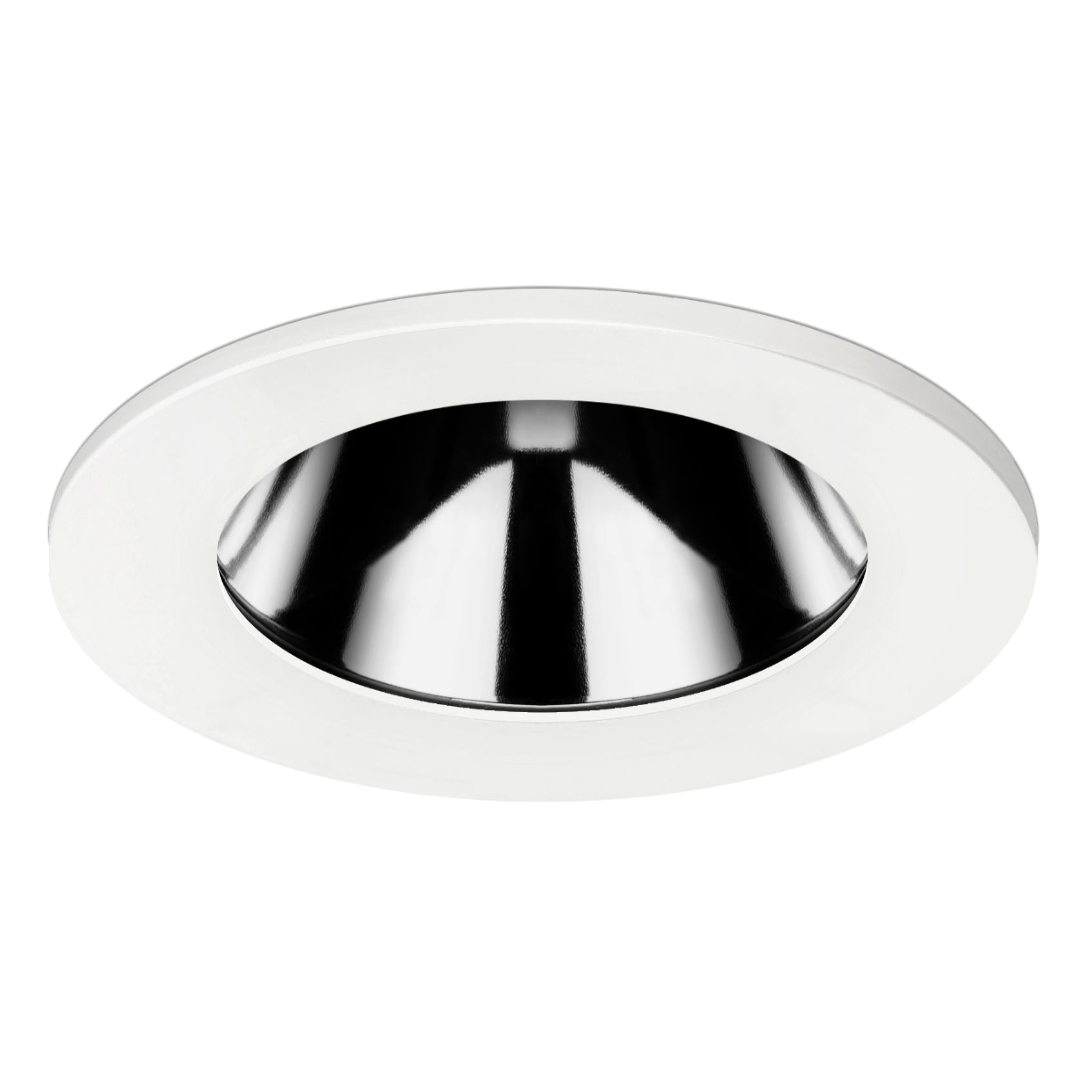

Circular down light manufactured primarily from die-cast Aluminium alloy.

Available in 8W, 14W, 19W or 28W options.

Tridonic COB LED with die-cast aluminium multi-finned heat sink.

Specular aluminium reflector with a 40° beam angle.

Removable die-cast front bezel rotates to secure and detach.

130mm diameter bezel and 99mm deep.

Secured in to the ceiling using 2 screw down rotating polymer clips for strength and stability.

Decorative accessories available including various drop glass attachments.

IP ratings of IP54 and IP65 are offered for exterior and damp locations.

LED lumen package of 1,075 lumens (8W), 1,900 lumens (14W), 2,450 lumens (19W) and 3,275 lumens (28W) when choosing the 4000K colour option.

Efficacy in excess of 134 lumens per Watt (8W option) and a CRI>80 (CRI>90 also available) <3SDCM and with a rated lamp life of 70,000 hours.

Available in various colour temperatures.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

Installs in to plasterboard, or similar, ceilings.

Ceiling cut-out of 110mm diameter.

5 year parts warranty.
