CL01-0010

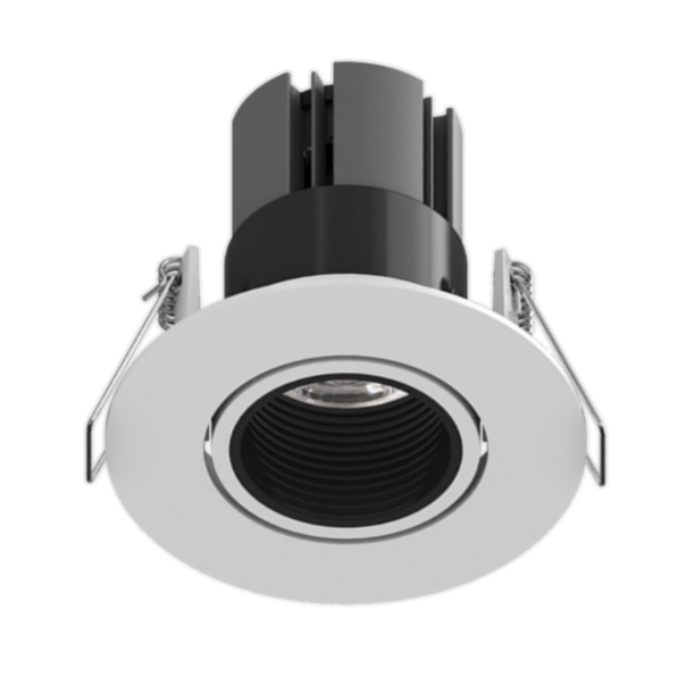

Circular down light manufactured primarily from die-cast and extruded aluminium alloy.

Available in 6W, 8W or 13W options.

COB LED light engine with extruded Aluminium multi-finned heat sink.

Ultra clear techno-polymer lens with a 24°, 36° or 60° beam angle.

Gimble allows for tilting 25° either side of vertical with 350° of rotation.

Low profile fixed bezel for clean ceiling lines.

95mm diameter bezel x 56mm (6W), 83mm (8W) and 95mm (13W) deep.

Secured in to the ceiling using 2 plastic coated stainless steel spring clips for strength and stability.

Deep set inserted baffle supplied in black finish for reduced glare.

LED lumen package of 540 lumens (6W), 760 lumens (8W) and 1,130 lumens (13W) when choosing the 4000K colour option.

Efficacy in excess of 95 lumens per Watt (8W option) and a CRI>90.

Also available in CRI>98 both with a rated lamp life of 70,000 hours.

Compliant with the 'WELL Building Standard' with an <3SDCM and R9 value of 90 to help promote a good Circadian Rhythm.

Available in various colour temperatures.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

Installs in to plasterboard, or similar, ceilings.

Ceiling cut-out of 75mm-85mm diameter.

5 year parts warranty.

Part Number:

CL01-0010 product part number creator
