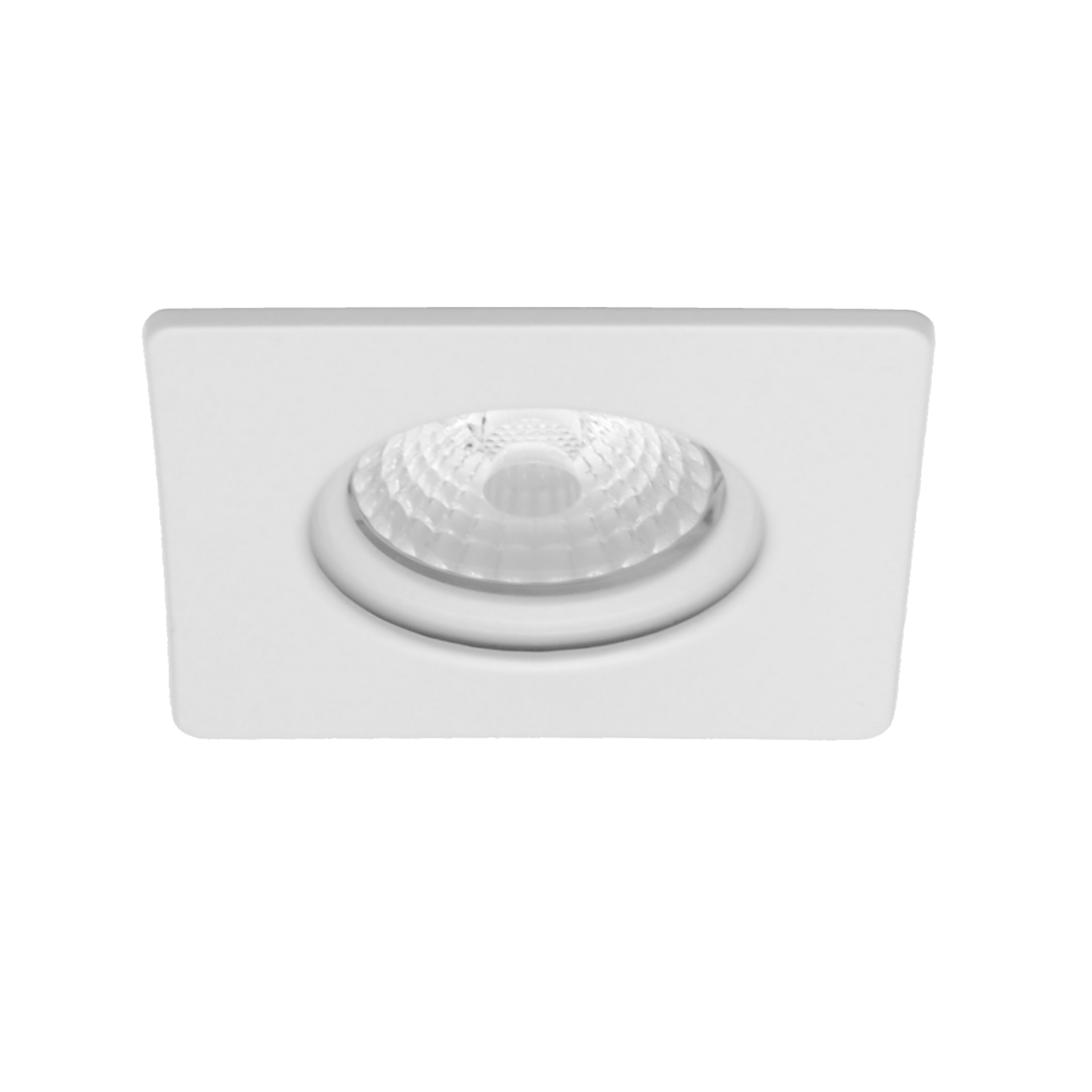

12.3W square fixed die cast Aluminium alloy down light with IP65 rating.

Clear protective glass lens and soft neoprene gasket.

High power LED light engine with dedicated power supply.

Beam angle and colour temperature affect the lumen output, but for a typical 40° 4000K lamp the lumen output is 1,430 lumens.

Various beam angles and colour temperatures are available.

Bezel diameter of 80mm with a cut-out hole of 73mm – 75mm required.

The overall installed height is 56mm.

Two plastic coated stainless steel spring clips provide a secure and safe installation in to a plasterboard, or similar, ceiling.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

CRI>80, <3SDCM and with a rated lamp life of 70,000 hours.

Part Number:

CL01-0013 product part number creator
