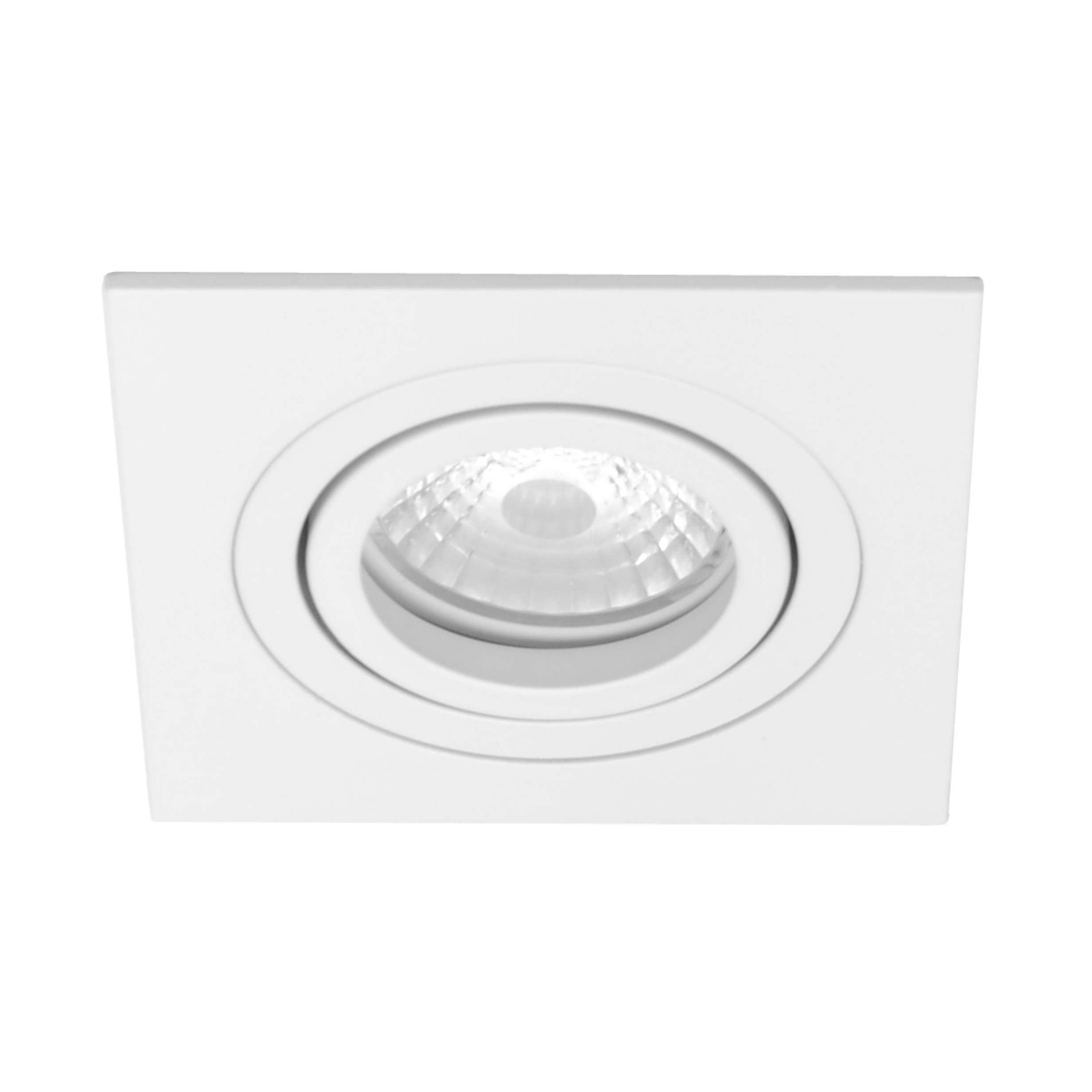

12.3W square, tilting and rotating, die cast Aluminium alloy down light.

double and triple versions are also available.

The recessed lamp housing can be easily removed 'push and click'.

Beam angle and colour temperature affect the lumen output, but for a typical 40° 4000K lamp the lumen output is 1,430 lumens.

Various beam angles and colour temperatures are available.

Body dimensions are 92mm long x 92mm wide and requires a cut- out hole of 80mm.

The overall installed height is 60mm.

Two plastic coated stainless steel spring clips provide a secure and safe installation in to a plasterboard, or similar, ceiling.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

CRI>80, <3SDCM and with a rated lamp life of 70,000 hours.

The overall installed height is 75mm.

Each lamp can tilt up to 20 degree depending upon rotational position (350°).

Part Number:

CL01-0014 product part number creator
