CL01-0018

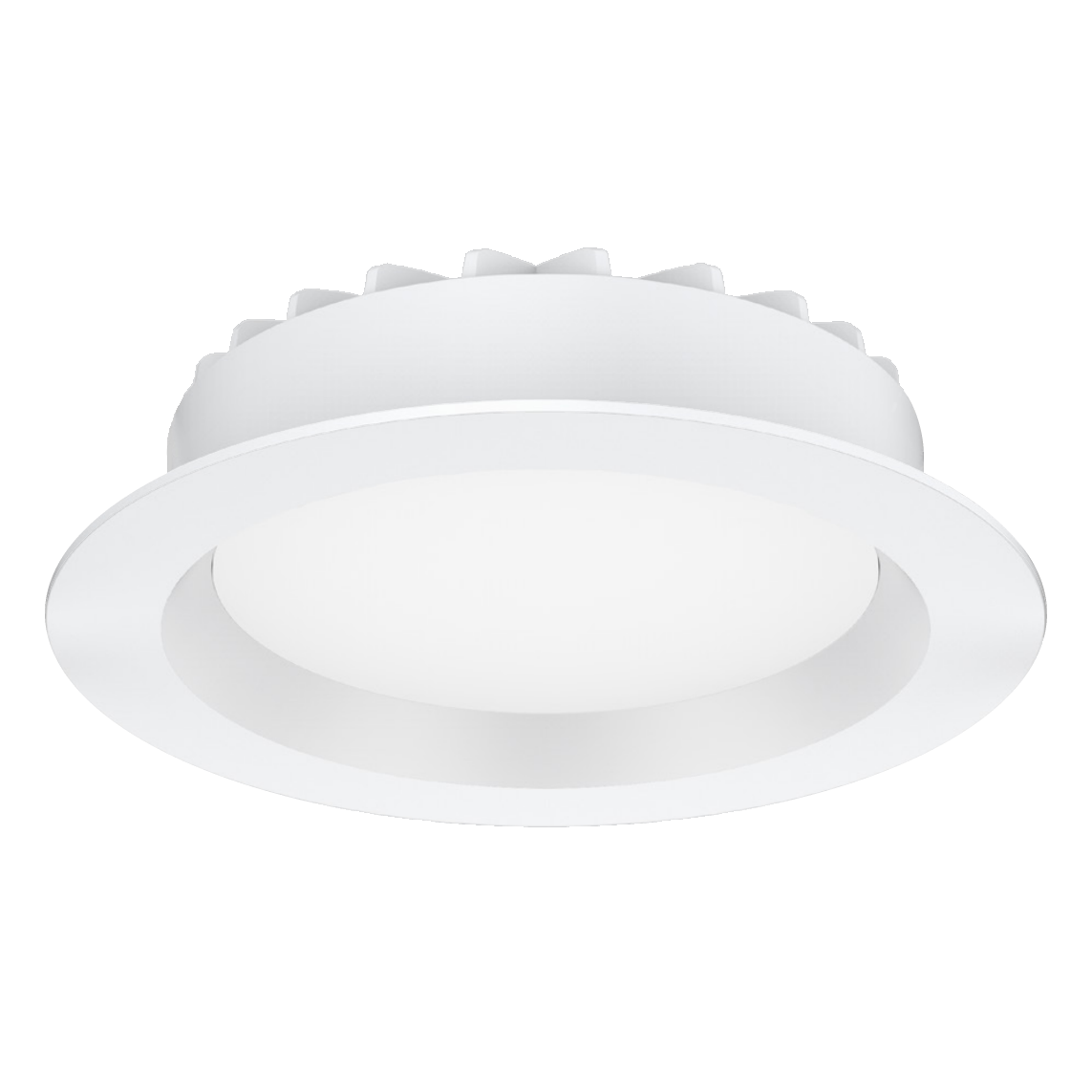

Circular IP54 rated down light manufactured primarily from die-cast Aluminium alloy.

Available in 7W, 10W, 15W, 18W and 25W tunable white (2,500K-5000K) options.

SMD LED light source with multi-finned heat sink built in to the body casting.

Opal polycarbonate diffuser producing a 90° beam angle.

85mm diameter bezel x 39mm (7W), 110mm diameter bezel x 38mm (10W), 145mm diameter bezel x 45mm (15W), 190mm diameter bezel x 45mm (18W), 190mm diameter bezel x 45mm (25W) and 228mm diameter bezel x 45mm (35W) deep.

Secured in to the ceiling using 2 stainless steel spring clips for strength and stability.

LED lumen package of 490-590 lumens (7W), 800-950 lumens (10W), 1,200-1,430 lumens (15W) and 1.410-1,800 lumens (18W).

Efficacy in excess of 98 lumens per Watt (15W option).

Rated lamp life of 40,000 hours.

Supplied with DT8 Dali Dimming (DT8) power supply.

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

Installs in to plasterboard, or similar, ceilings.

Ceiling cut-outs of 70-75mm (7W), 90-95mm (10W), 120-130mm (15W), 160-170mm (18W) and 200-211mm (25W).

Part Number:

CL01-0018 product part number creator
