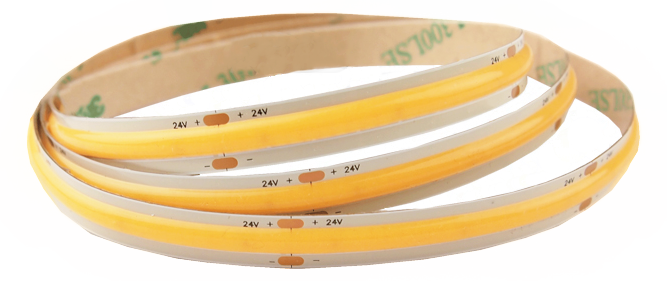

5M maximum run length <1SDCM LED flexible COB sealed strip and can be powered from one end only with a negligible loss in brightness.

18W/m and emitting 1700lm/M when using the IP67 rated version or IP20 rated versions when 4000K is selected.

24V DC supply feeding strings of multiple x SMD0603 LED chips.

CRI>90 (>94 lumens per watt). Cutting distance is every 38.46mm.

Requires a suitable 24V power supply appropriate to the total wattage based on the run length. A safety factor of +10% should be used for non-dimming power supplies but a safety factor of +30% should be used for dimming power supplies to ensure dimming stability.

10mm PCB width for IP20 rated versions and 12mm sleeving width for IP67 rated versions.

3M high bond adhesive tape is installed on to the back of the LED PCB strip for ease of installation. Supplied with live feed connector.

Due to the delicate components used in this product care should be taken when installing. Do not twist, bend or stretch the LED strip. Always carefully unwind large reels on a unspooling device.
