CL03-0010

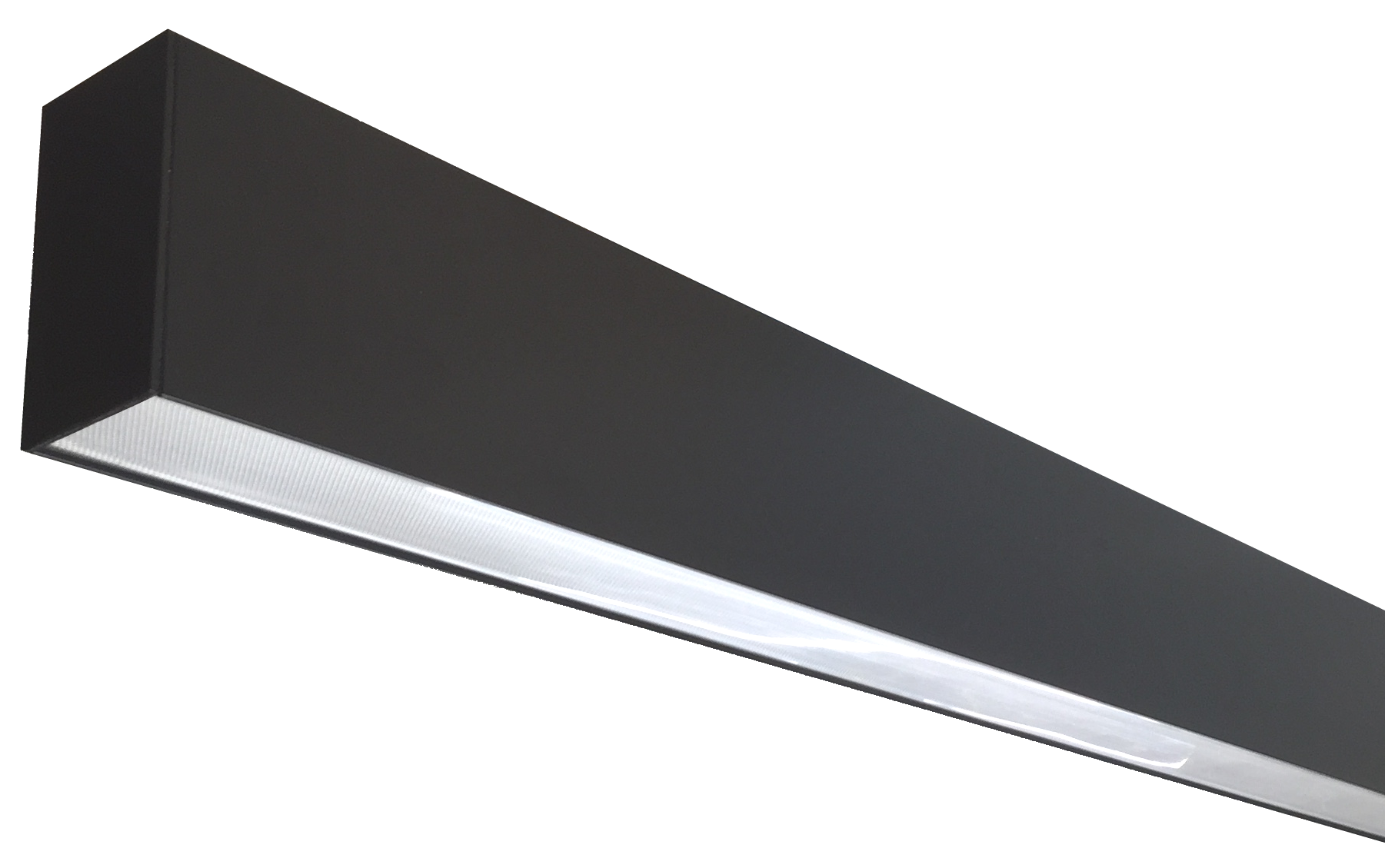

Extruded aluminium linear lighting system for surface or suspension mounting.

Narrow profile design for low ceiling installations.

Available with tunable white LED upon request and supplied with DT8 (Dali type 8) ballasts.

Supplied as standard with 100% downward light or can be supplied with an upward lighting component.

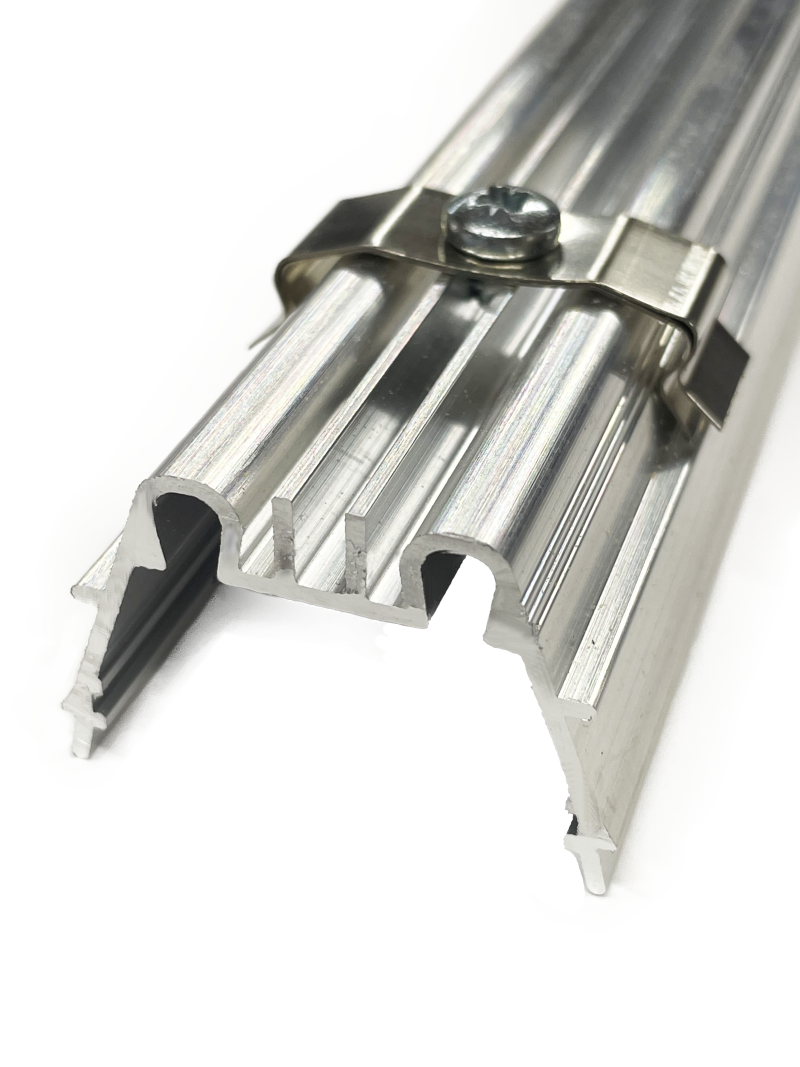

Manufactured from 6063 T6 extruded aluminium alloy.

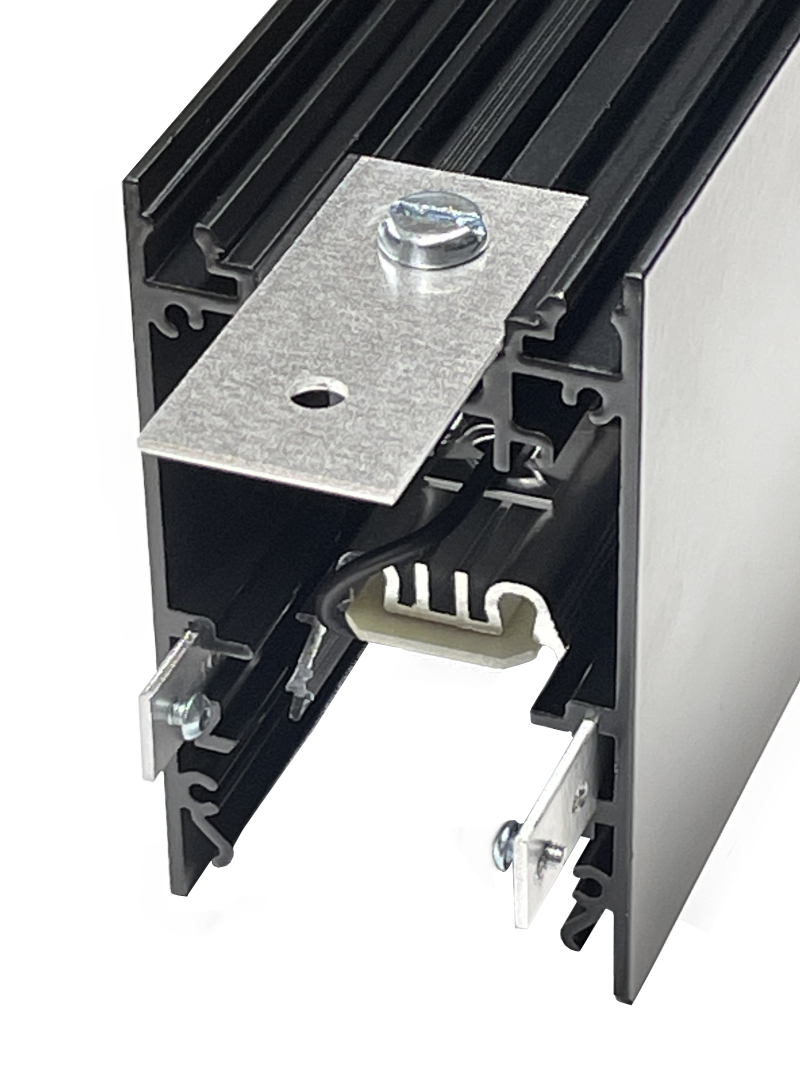

Mains cable entry is via the top and at one end.

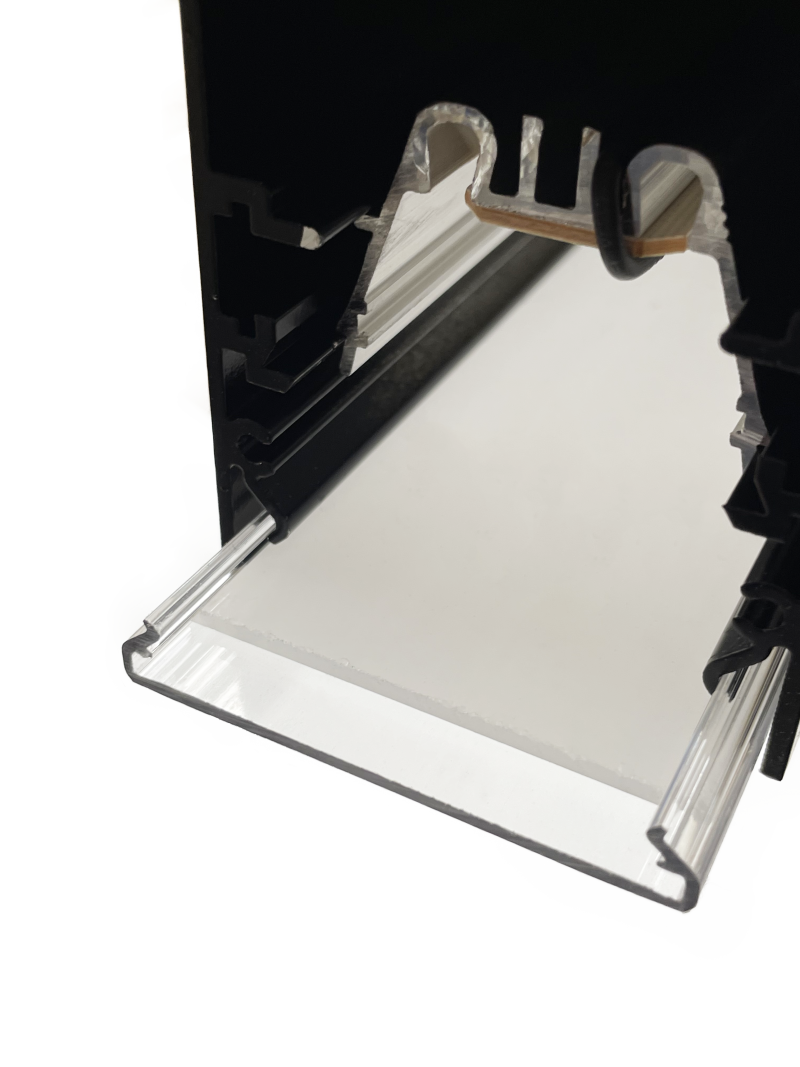

This product has 2 diffusers, the main 54mm wide diffuser points downwards, and the smaller 34mm wide diffuser points upwards.

The diffusers are specially blended from LED grade frosted polycarbonate for excellent light transmission while eliminating 'bright spots' and snaps in for ease of installation.

Optional UGR19 compliant 2 part diffuser lens comprising of a clear polycarbonate body with inserted light controlling panel.

Additional colour filters, or diffusing, filters can be easily installed.

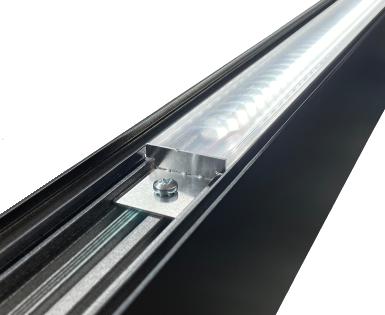

RGB colour mixing LED strips can be supplied as an addition, or instead of, the standard white LED boards.

This luminaire is manufactured in standard lengths, which include the 2mm thick end caps where required, or can be easily supplied in bespoke lengths (subject to the LED board standard lengths of 280mm and 560mm).

Other lengths of LED board (140mm and 70mm) can be used to achieve a more accurate length, if required, but the LED board type will change along with the parameters.

Standard Initial LED lumen package of 3,336 lumens at 250mA while consuming 22 circuit watts (information pro rata for a length of 1,000mm). Technical data is based on the Tridonic LLE 20 LED boards (higher efficacies are available to special order up to 176 lumens per circuit watt), luminaire lumens are in excess of 150 lumens per circuit watt.

Dali dimming constant current power supply fitted as standard.

Emergency output (BLF) is typically 220 lumens (when illuminating 1 x 560mm LED board) but is subject to various factors.

Available in 3,000, 4,000, 5,000 and 6,500K with a CRI\80 and compliant to <3SDCM.

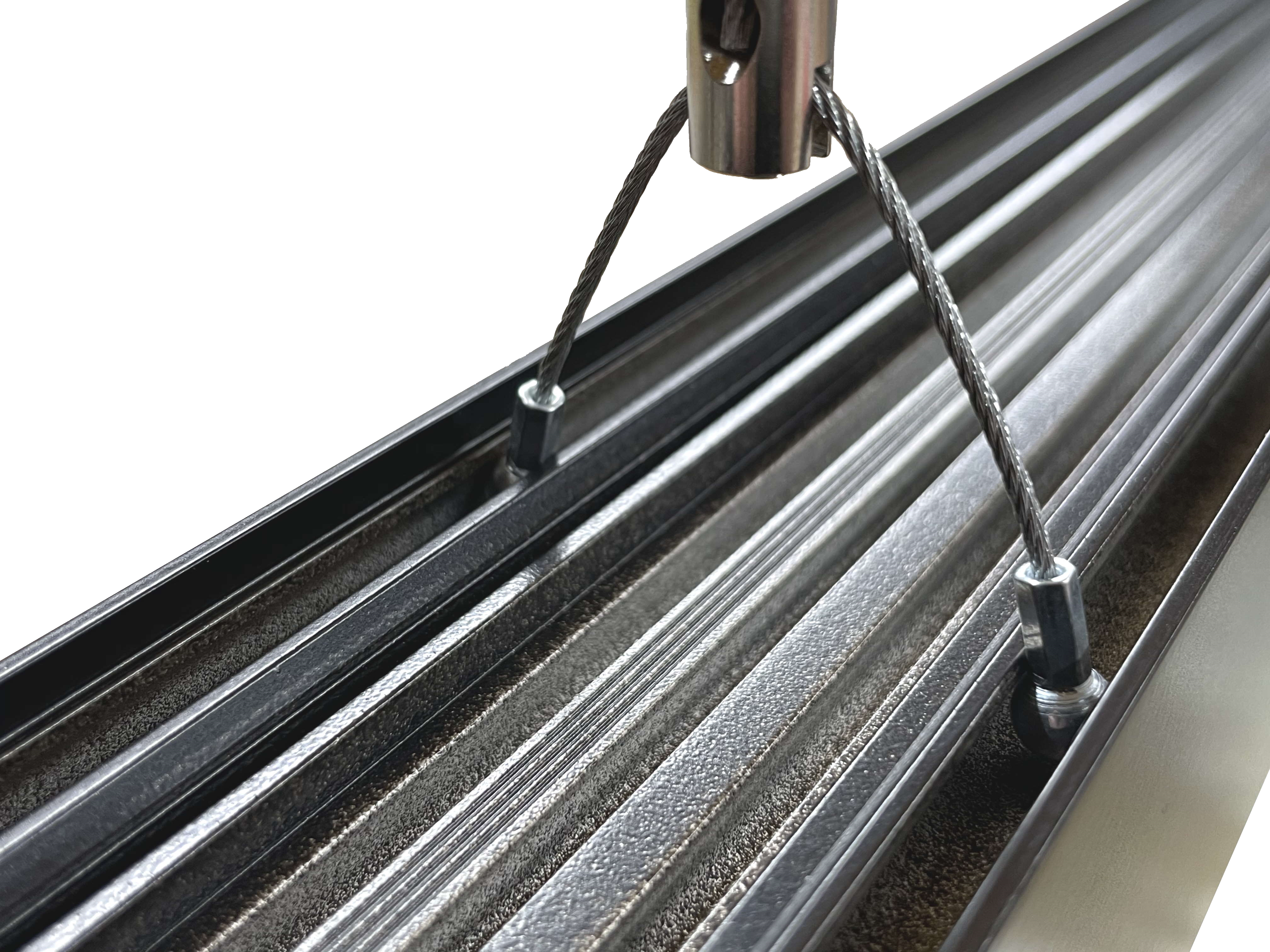

Standard suspension set supplied, when required. Extruded channels in the back of the body housing allow for the suspensions to be easily slid along for accurate vertical alignment.

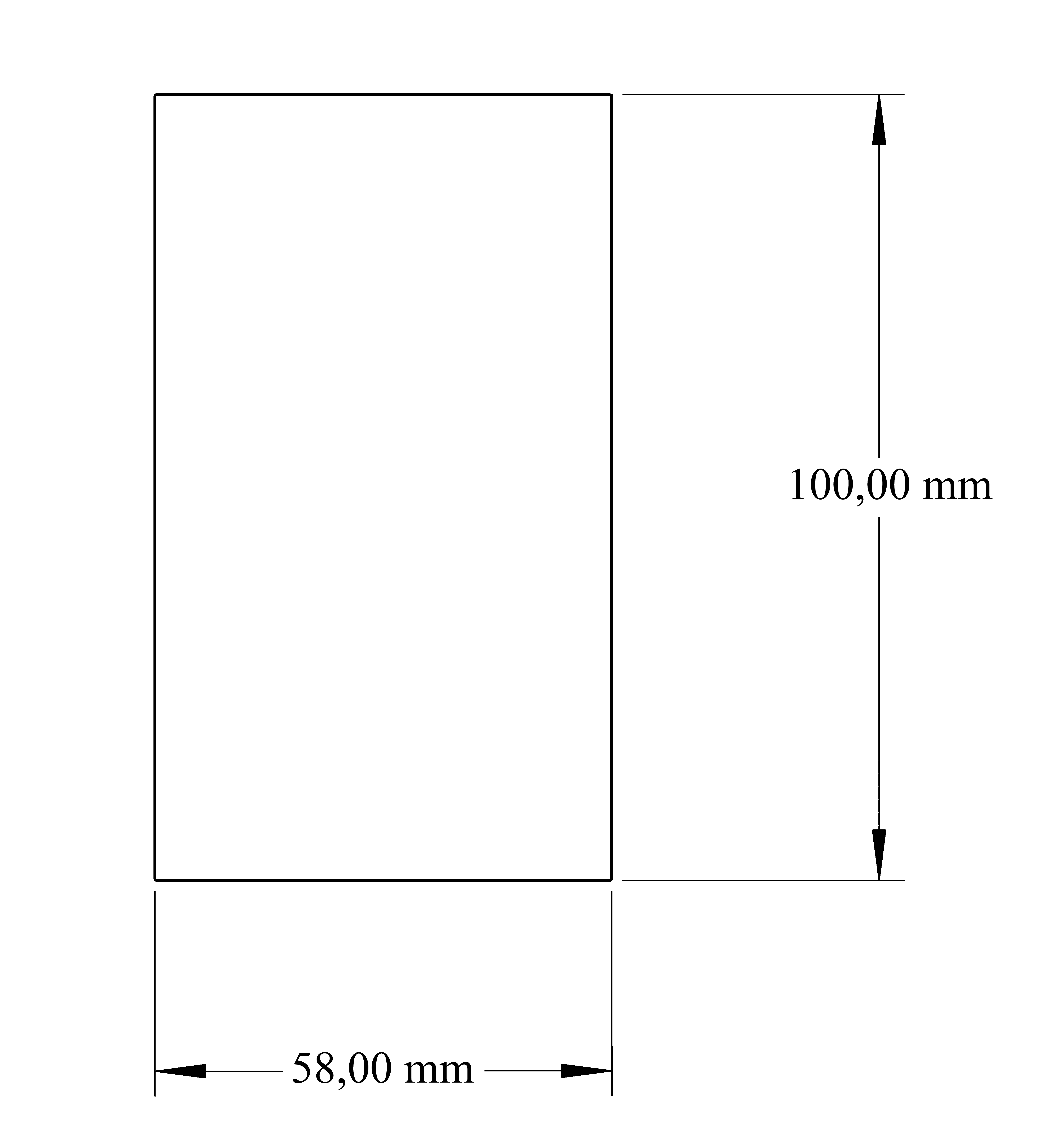

Width of 58.00mm and with a depth of 100.00mm.

This luminaire is supplied painted RAL9010 as standard.
