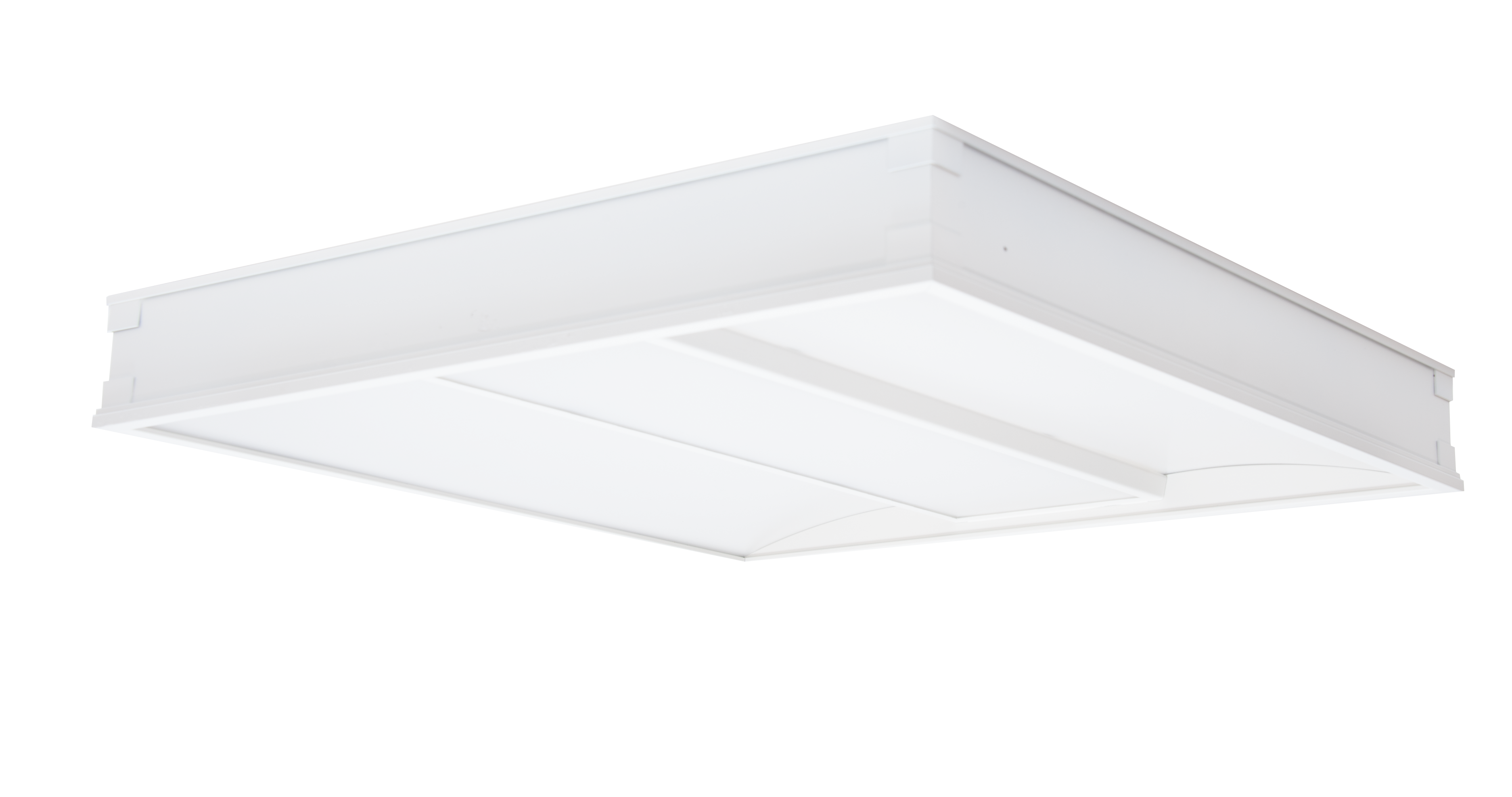

Manufactured primarily from 6063 T3 extruded aluminium alloy.

Curved 2mm thick PMMA (Acrylic) diffuser side panels.

Flat 2mm thick PMMA (Acrylic) diffuser mounted in to the central 174mm wide basket.

Central diffuser can also be supplied with, high light transmission factor, ‘Pyraprism’ PMMA.

Alternatively all diffuser panels can be fitted with ‘Pyraprism, to help comply with a <19UGR working space.

Optional air handling.

Initial LED lumen package of 5,200 lumens (4000K) at 400mA while consuming 32 circuit watts (2 x Osram BA-AR-G2).

Luminaire lumens are in excess of 166 lumens per circuit watt.

Available with STandard non-dimming (ST), Dali Dimming (DD), integrated Dali dimming bluetooth Mesh network (DM) or with Dali DT8 Tunable White (TW). Please note that when ordering Tunable white the 2 x 540mm x 270mm LED panel boards will be substituted for 2 x 560mm x 20mm tunable LED strips mounted centrally.

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

Available in 3000K 5140lm, 4000K 5200lm and 6500K 5200lm. CRI>80, <3SDCM and with a rated lamp life of 70,0000 hours.

Electrostatic powder coating in RAL9010 20% gloss as standard but can be supplied in any RAL colour.

Supplied in 595mm x 595mm version (600mm x 600mm) to fit standard ‘T bar’ ceiling grid systems of either 15mm or 24mm as SAS System 130 Trugrid T15 or SAS System 130 Trugrid T24. Please advise on the ceiling type, at the time of ordering, as appropriate brackets will need to be supplied Other body sizes are available.

584mm x 584mm body size will fit the following SAS130 ceiling systems: System 130 Alugrid S 15/19, System 130 Alugrid S 15/16, System 130 Alugrid P 15/08, System 130 Alugrid Q 15/08, System 130 Alugrid P 15/16, System 130 Alugrid Q 15/19. ,574mm x 574mm body size will fit the following SAS130 ceiling systems: System 130 Alugrid Q 26/16.

Other variations can also be made for the following SAS ceiling systems: SAS 120, SAS 150, SAS 200, SAS 205 and SAS320.
