CL04-0003

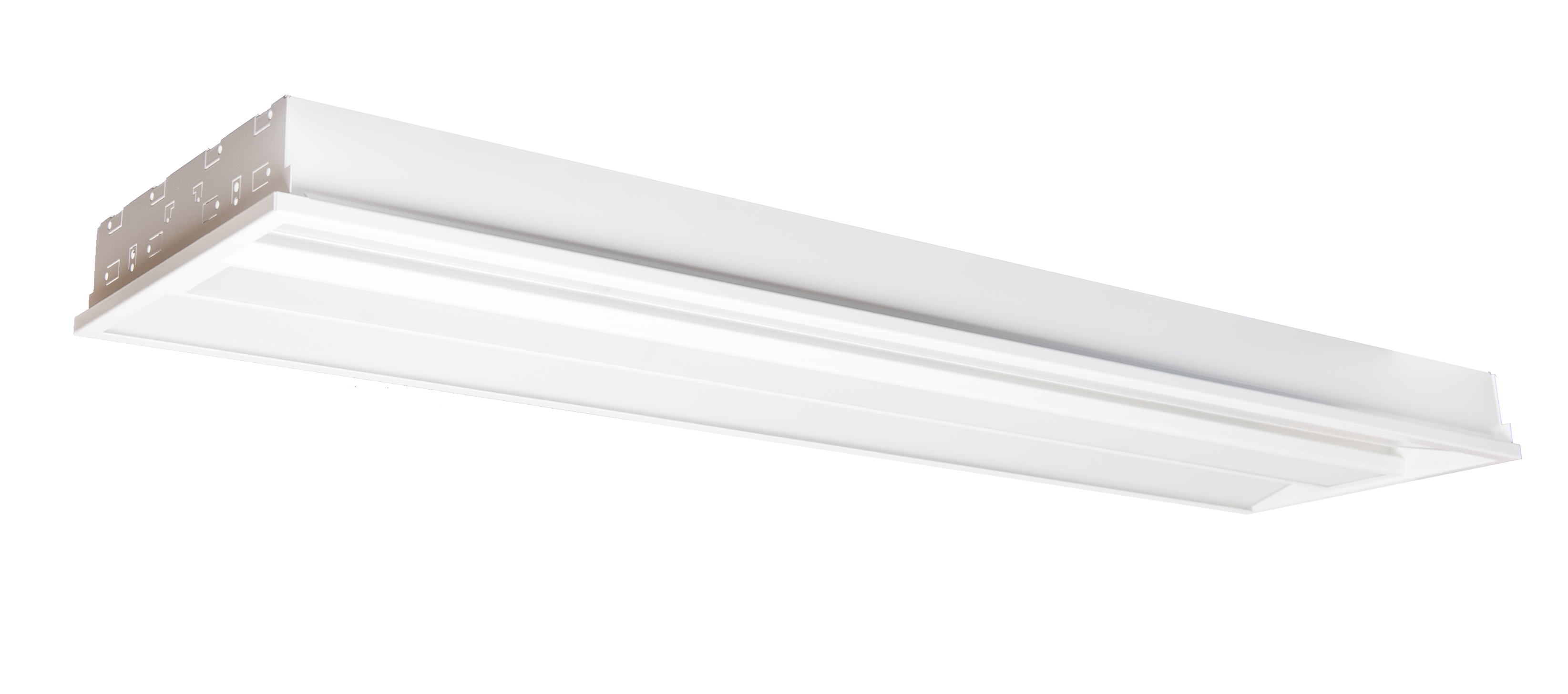

Manufactured from fabricated aluminium alloy for the trim and mild steel for the back box.

The back box comes complete with integral 'bend out' mounting tabs and are punched to suit the appropriate tile height.

Flat 2mm thick PMMA (Acrylic) diffuser side panels.

Flat 2mm thick PMMA (Acrylic) diffuser mounted in to the central 82mm wide basket.

Central diffuser can also be supplied with, high light transmission factor, ‘Pyraprism’ PMMA.

Alternatively all diffuser panels can be fitted with ‘Pyraprism’ PMMA to help comply with a <19UGR working space.

The trim is retrained by sprung steel ' wishbone' clips to allow for easy removal when required.

Optional air handling.

Initial LED lumen package of 5,200 lumens (4000K) at 300mA while consuming 32 circuit watts (2 x Osram PL-LIN-Z5) for the 595mm x 595mm version, 5,150 lumens (4000K) at 350mA while consuming 32 circuit watts (1 x Osram PL-LIN-Z5) for the 299mm x 1299mm version and 6,500 lumens (4000K) at 350mA while consuming 40 circuit watts (1 x Osram PL-LIN-Z5) for the 295mm x 1495mm version.

Luminaire lumens are in excess of 166 lumens per circuit watt.

Available with STandard non-dimming (ST), Dali Dimming (DD), integrated Dali dimming bluetooth Mesh network (DM) or with Dali DT8 Tunable White (TW).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE) .

Available in 3000K 5140lm, 4000K 5200lm and 6500K 5200lm. CRI>80, <3SDCM and with a rated lamp life of 70,0000 hours.

Electrostatic powder coating in RAL9010 20% gloss as standard but can be supplied in any RAL colour.

Supplied in 299mm x 1199mm (300mm x 1200mm), 299mm x 1499mm (300mm x 1500mm) and 599mm x 599mm (600mm x 600mm) versions to fit SAS System 150 (SAS150), *Please advise at the time of ordering if this ceiling has 'square edge' or 'bevel edge' ceiling tiles, and also if they are gasketed*.
