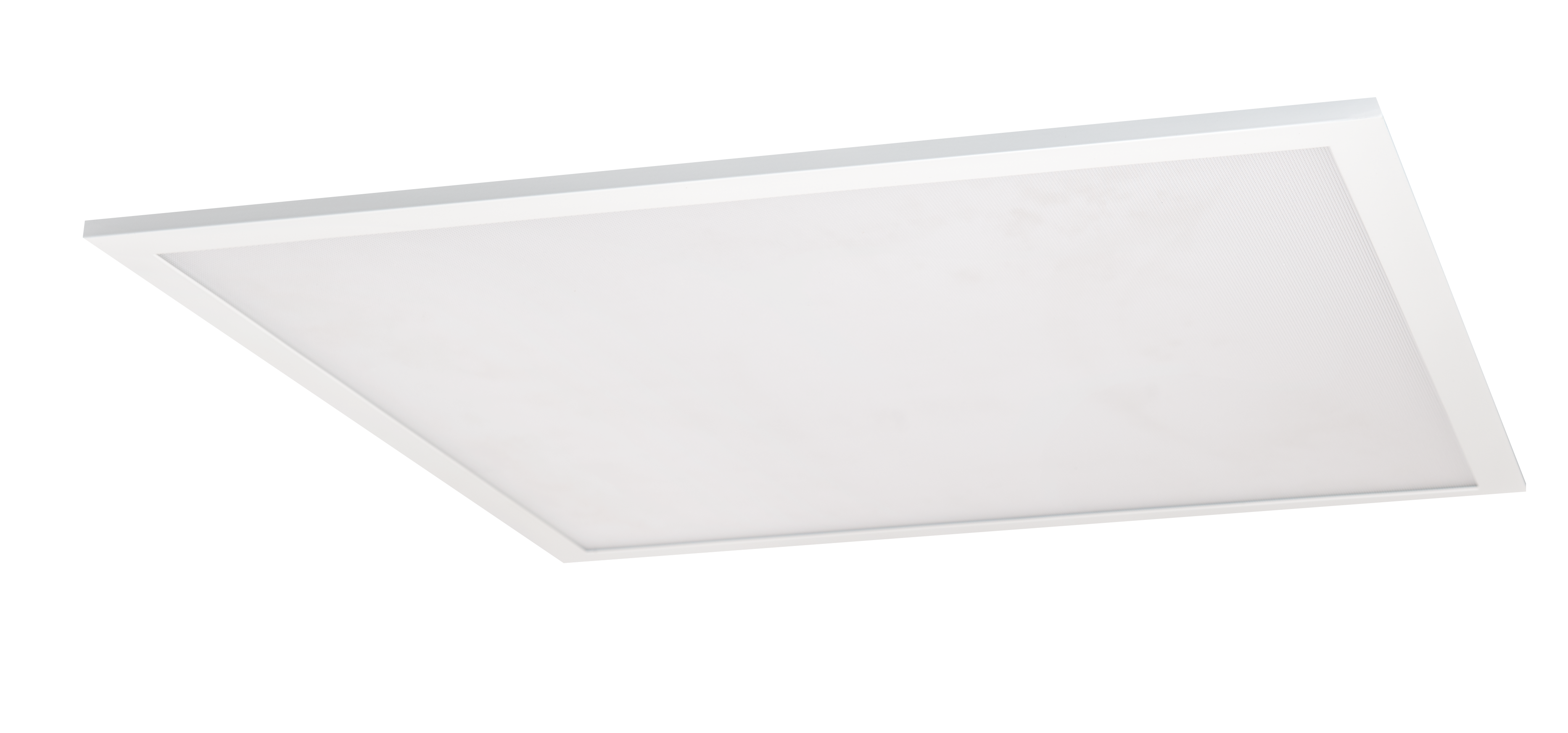

Edge lit low profile modular luminaire.

Manufactured primarily from 6063 T3 extruded aluminium alloy.

Light guide panel (LGP) manufactured from ultra clear 3mm thick PMMA (Acrylic).

Diffuser manufactured from, high light transmission factor, 'Pyraprism' PMMA to help comply with a <19UGR working space.

Emitted LED lumen package of 3,800 lumens (4000K) at 800mA while consuming only 32 circuit watts (118 lumens per circuit watt), Constant current SMD2835 epistar LM80 LED chips.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE) .

Available in 3000K 3550lm, 4000K 3800lm and 6500K 3870lm. CRI>80, <4SDCM and with a rated lamp life of 70,0000 hours.

Electrostatic powder coating in RAL9016 as standard.

Slim design of 12.5mm.

Supplied in 595mm x 595mm version (600mm x 600mm) to fit standard ‘T bar’ ceiling grid systems of either 15mm or 24mm as SAS System 130 Trugrid T15 or SAS System 130 Trugrid T24.
