Manufactured primarily from 0.9mm thick fabricated mild steel for the back box and the trim.

The back box comes complete with integral 'bend out' mounting tabs and are punched to suit the appropriate tile height.

2mm thick PMMA (Acrylic) diffuser.

Alternatively the diffuser panel can be fitted with ‘Pyraprism' PMMA to help comply with a <19UGR working space.

The trim is retrained by sprung steel ' wishbone' clips to allow for easy removal when required.

Initial LED lumen package of 1,500 lumens (4000K) at 500mA while consuming 12 circuit watts for the 184mm x 184mm version and 2,256 lumens (4000K) at 350mA while consuming 18 circuit watts.

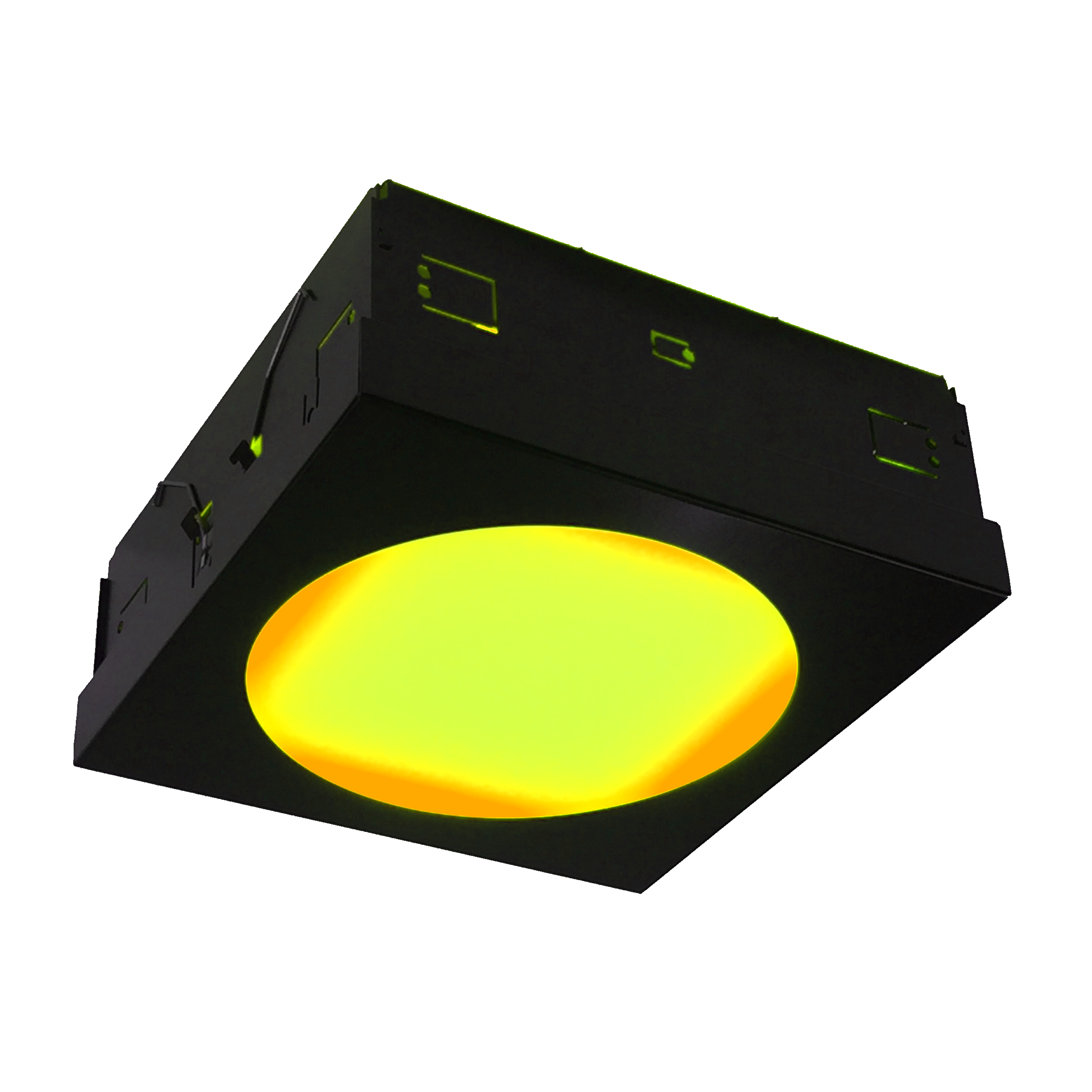

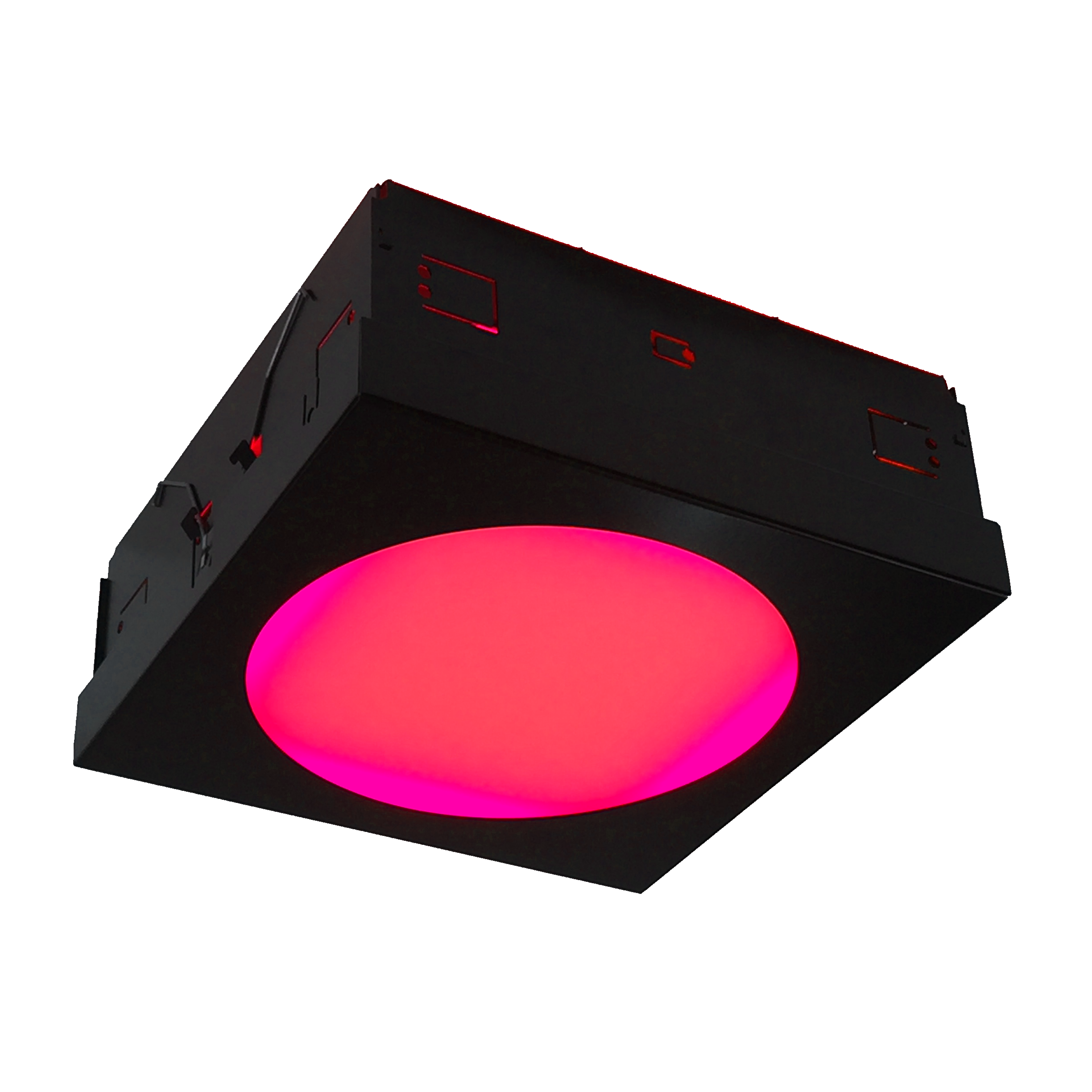

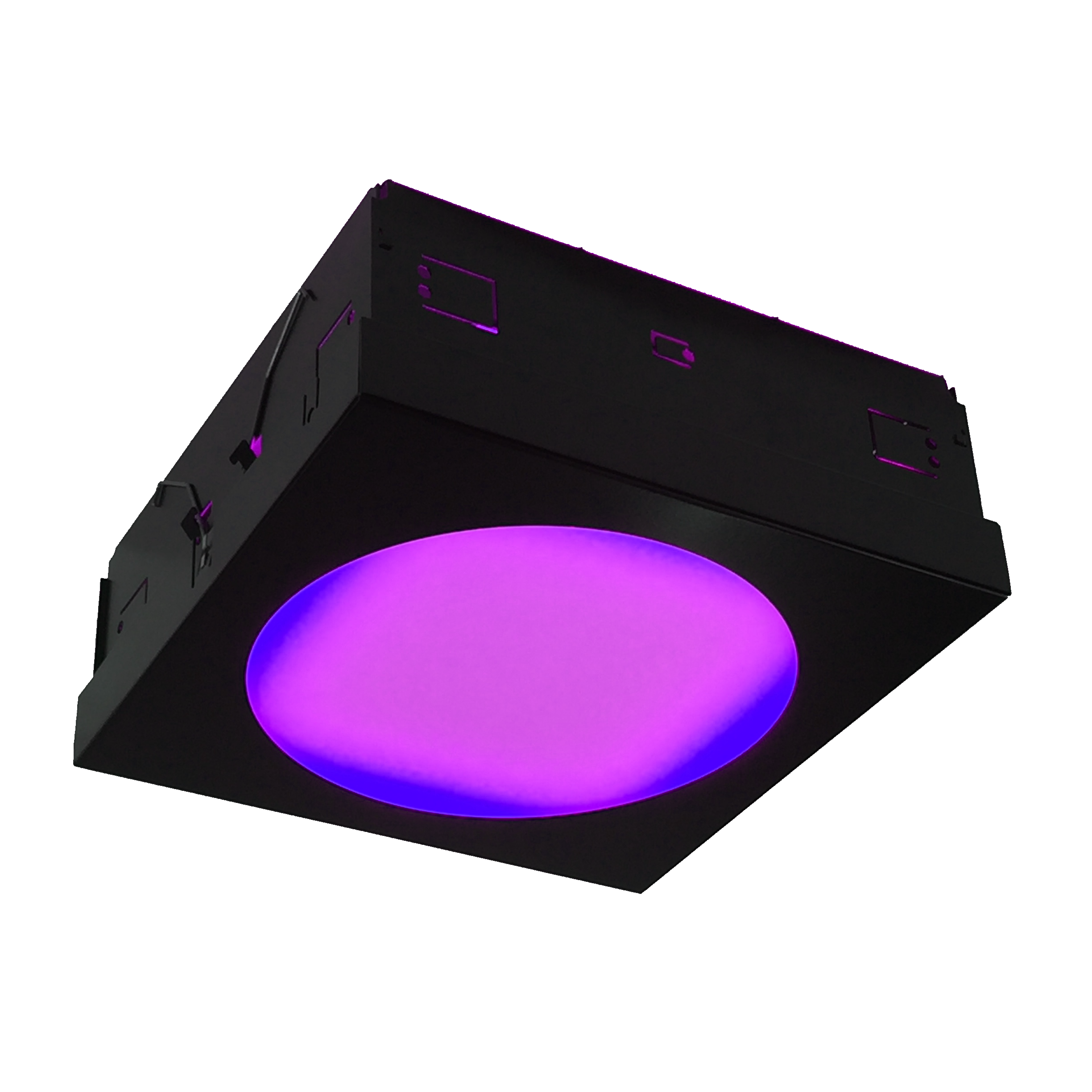

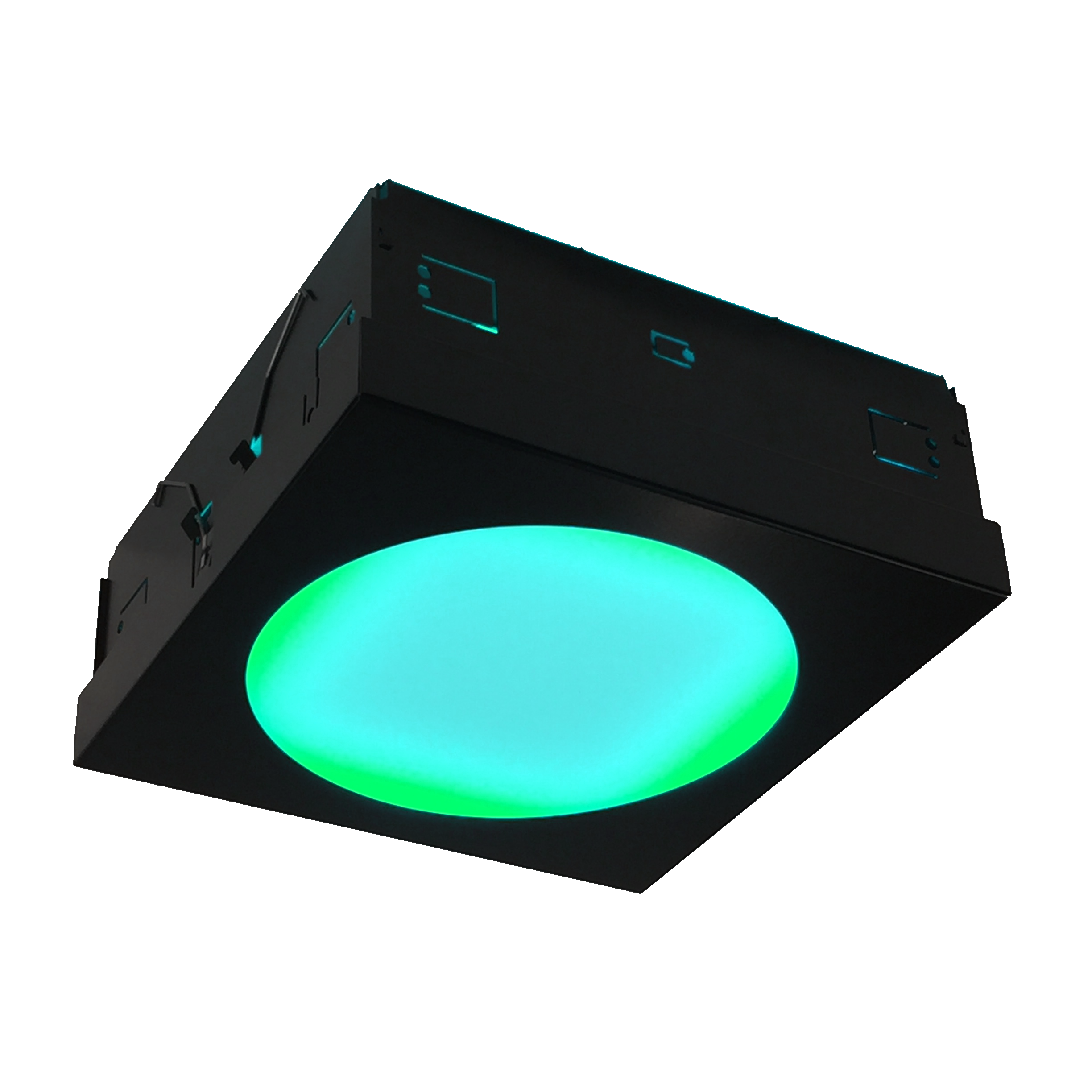

Available with STandard non-dimming (ST), Dali Dimming (DD), integrated Dali dimming bluetooth Mesh network (DM), Dali DT8 Tunable White (TW) or with colour mixing RGB LED strip (RGB) which can be supplied as the main light source or as an addition to the white light source.

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE).

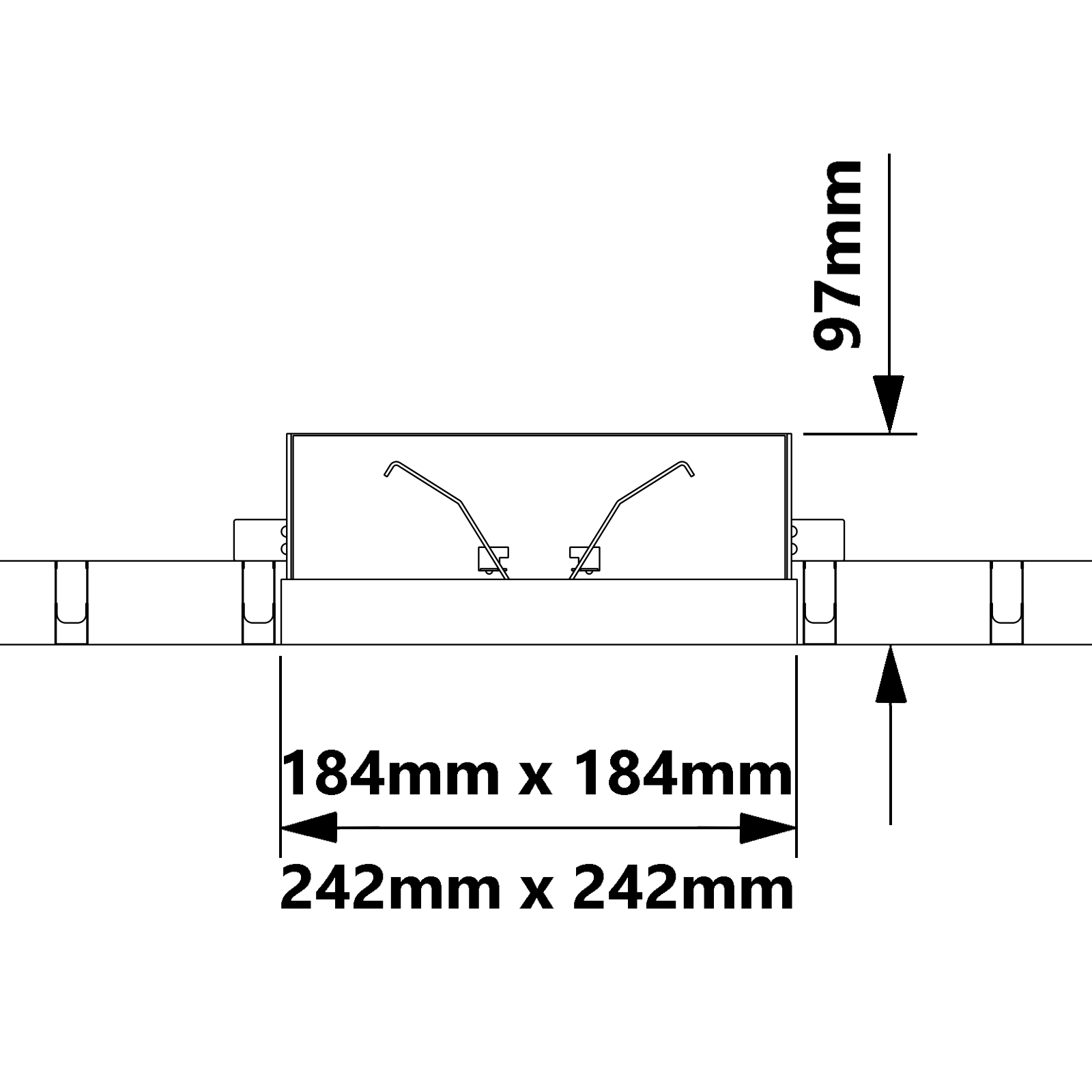

Installs in to a SAS 800 ceiling grid system. For cell sizes of 86mm an aperture of 185mm x 185mm needs to be created and for cell sizes of 100mm an aperture of 243mm x 243mm needs to be created. .
