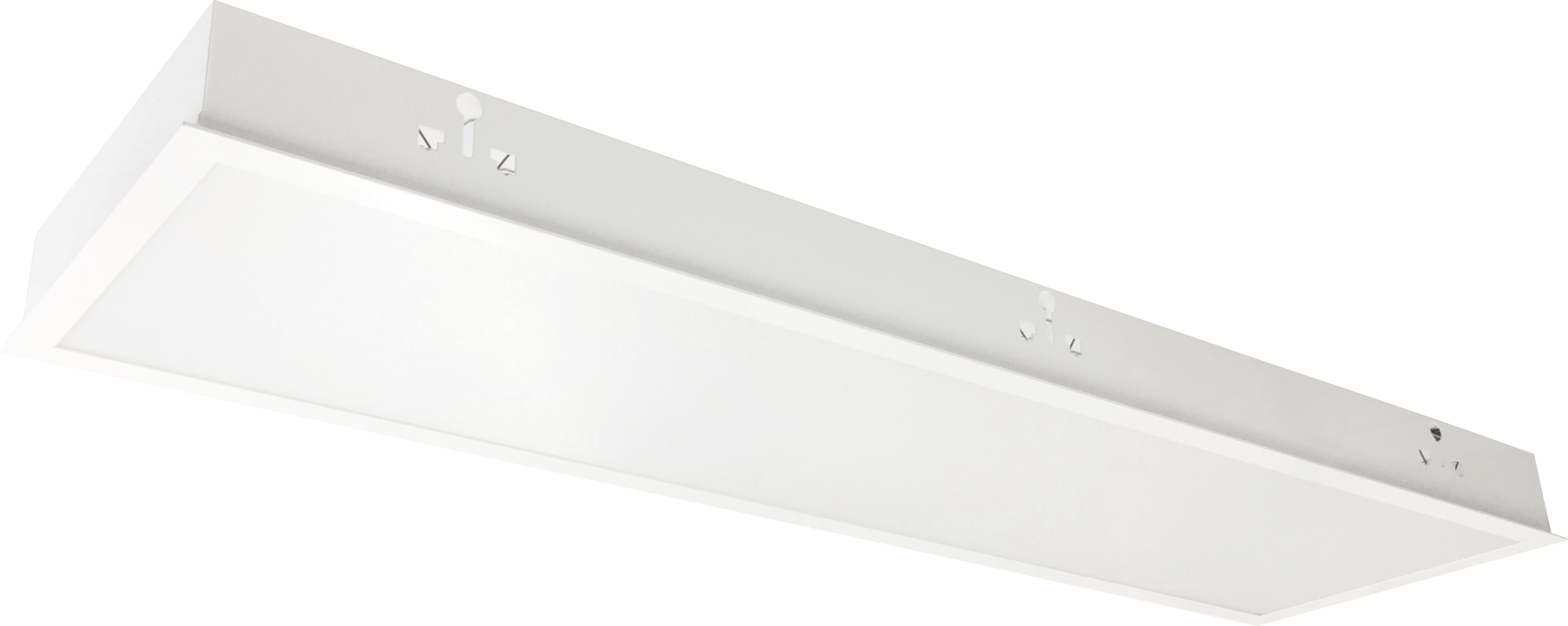

Modular luminaire for plasterboard ceilings.

Manufactured from extruded aluminium alloy for the trim and mild steel for the back box.

The back box comes complete with 'Lumafix' mounting brackets for installing in to a plasterboard ceiling between 35mm and 60mm (the long edges must be built up behind the plasterboard to achieve these thicknesses).

The trim is retrained by sprung steel ' wishbone' clips to allow for easy removal when required.

Flat 2mm thick PMMA (Acrylic) diffuser.

Initial LED lumen package of 4,840 lumens at 350mA while consuming 32 circuit watts (2 x Tridonic QLE G2) for the 600mm x 600mm and the 300mm x 1200mm.

Initial LED lumen package of 4,840 lumens at 200mA while consuming 32 circuit watts (6 x 560mm and 3 x 280mm Tridonic LLE G4) for the 300mm x 1500mm. ,Emitted luminaire lumens are in excess of 110 lumens per circuit watt.

Dali dimming constant current power supply fitted as standard.

Emergency output (BLF) is typically 345 lumens.

Available in 3,000, 4,000, 5,000 and 6,500K with a CRI \u003e80 and compliant to MacAdam 3 SDCM.

Electrostatic powder coating in RAL9010 as standard but can be supplied in any RAL colour.

Supplied in 600mm x 600mm version or 321mm x 1166mm. .
