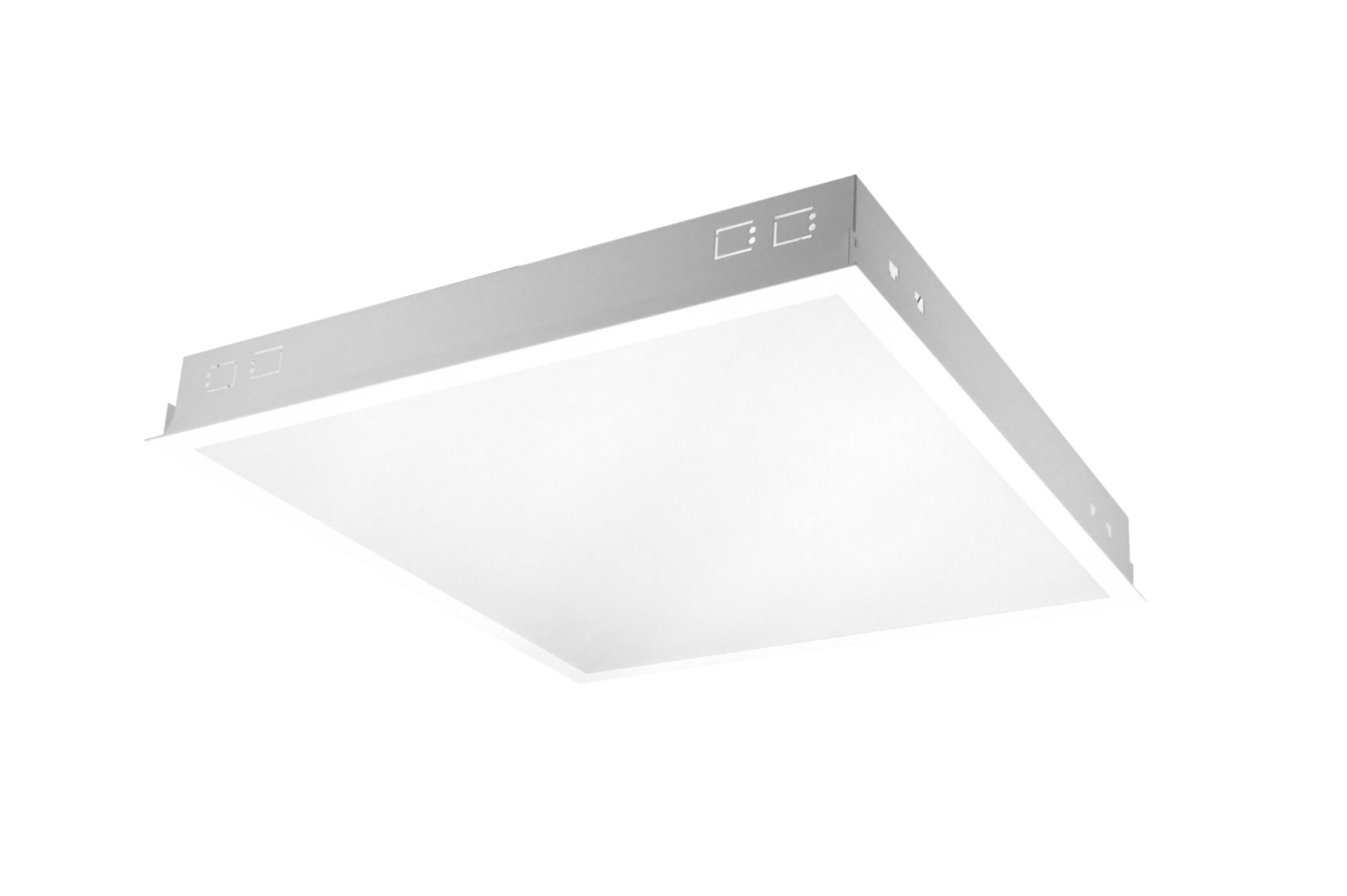

Modular luminaire for SAS 120 ceiling grid.

Manufactured from extruded aluminium alloy for the trim and mild steel for the back box.

The back box comes complete with integral 'bend out' mounting tabs and are punched to suit the 2 differrent ceiling tile thicknesses supplied with the SAS 120 ceiling grid.

The trim is retrained by sprung steel ' wishbone' clips to allow for easy removal when required.

Flat 2mm thick PMMA (Acrylic) diffuser.

Alternatively the diffuser panel can be fitted with ‘Pyraprism' PMMA to help comply with a <19UGR working space.

Optional air handling, Initial LED lumen package of 5,200 lumens (4000K) at 400mA while consuming 32 circuit watts (2 x Osram BA-AR-G2).

Luminaire lumens are in excess of 166 lumens per circuit watt.

Available with STandard non-dimming (ST), Dali Dimming (DD) or integrated Dali dimming bluetooth Mesh network (DM).

Converted to emergency with either Standard Emergency (SE) or with Dali monitoring Emergency (DE) .

Available in 3000K 5140lm, 4000K 5200lm and 6500K 5200lm. CRI>80, <3SDCM and with a rated lamp life of 70,0000 hours.

Electrostatic powder coating in RAL9010 20% gloss as standard but can be supplied in any RAL colour.

Supplied in 598mm x 598mm version (600mm x 600mm) or 298mm x 1198mm (300mm x 1200mm), Modified versions available to fit in to SAS 330 ceiling grids available. Please advise if gaskets have been specified for this ceiling.
