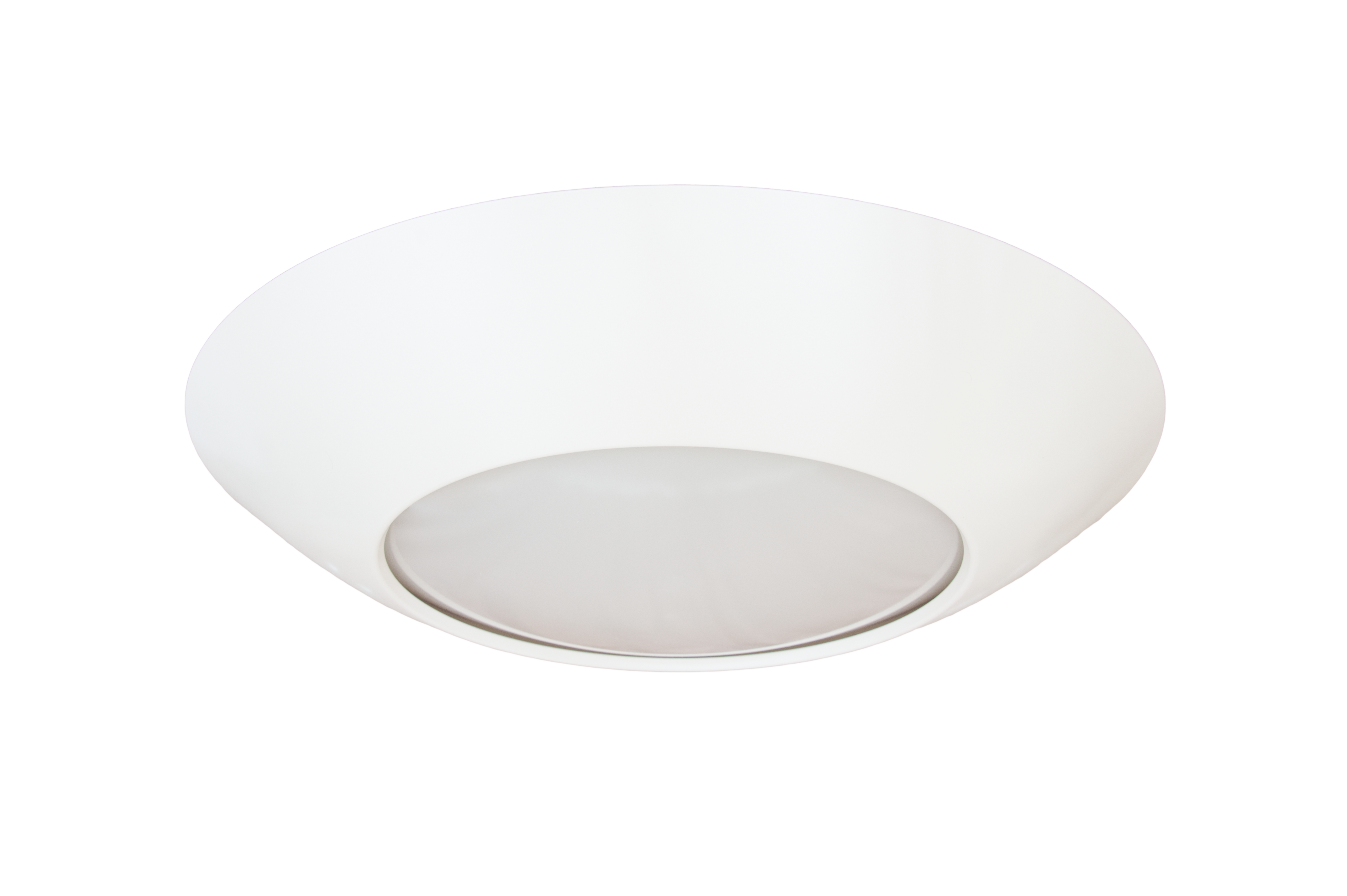

Exterior / interior IP65 rated LED circular surface mounted luminaire.

Decorative detachable 727mm diameter spun aluminium trim held in place by 6 'twist and lock' fixing plates.

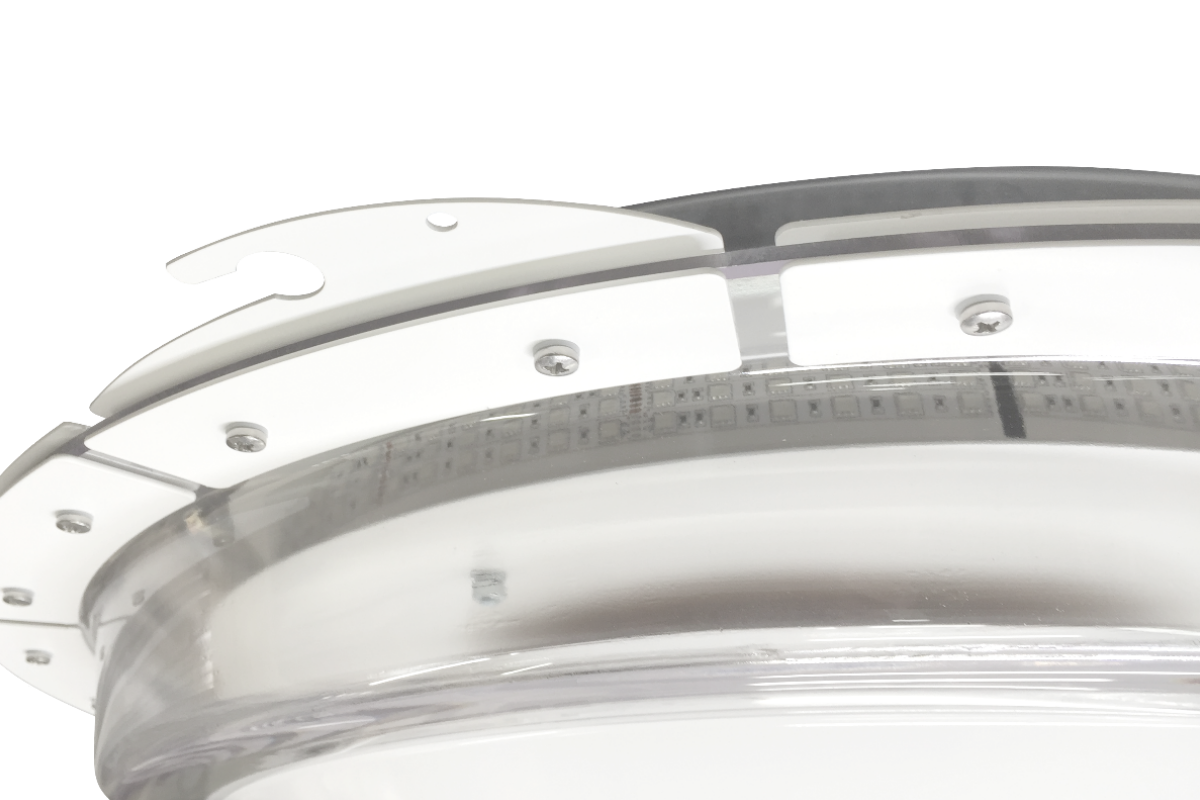

Main body comprises of two vacuum formed UV stabilised 5mm thick transparent PMMA (Acrylic) body shells fixed together with twelve pressure plates, on each side, with a soft foam waterproof gasket in between.

Overall projection / depth of 165mm.

A spun aluminium tray has three strips (5 Metres) of RGB colour changing 5050 SMD flexible LED strips fixed to the circumference and controlled via a 3 channel Dali controller powered by a 100W power supply unit.

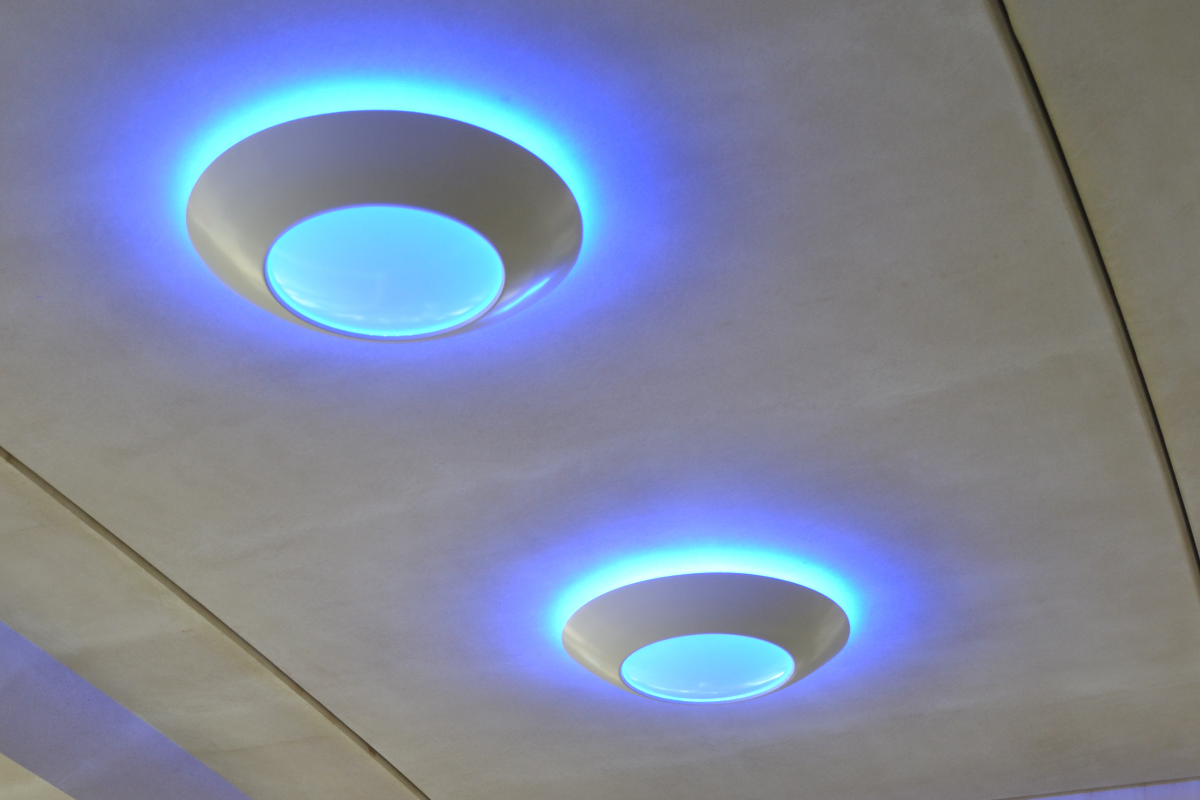

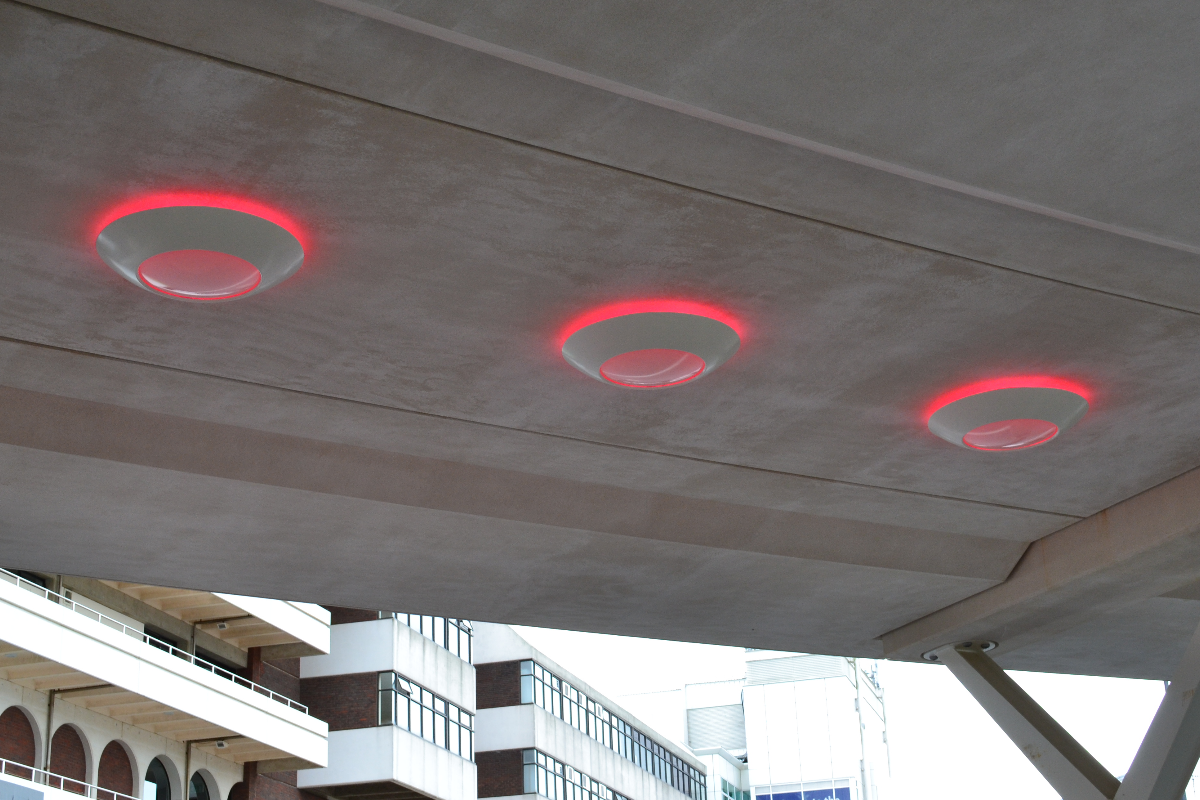

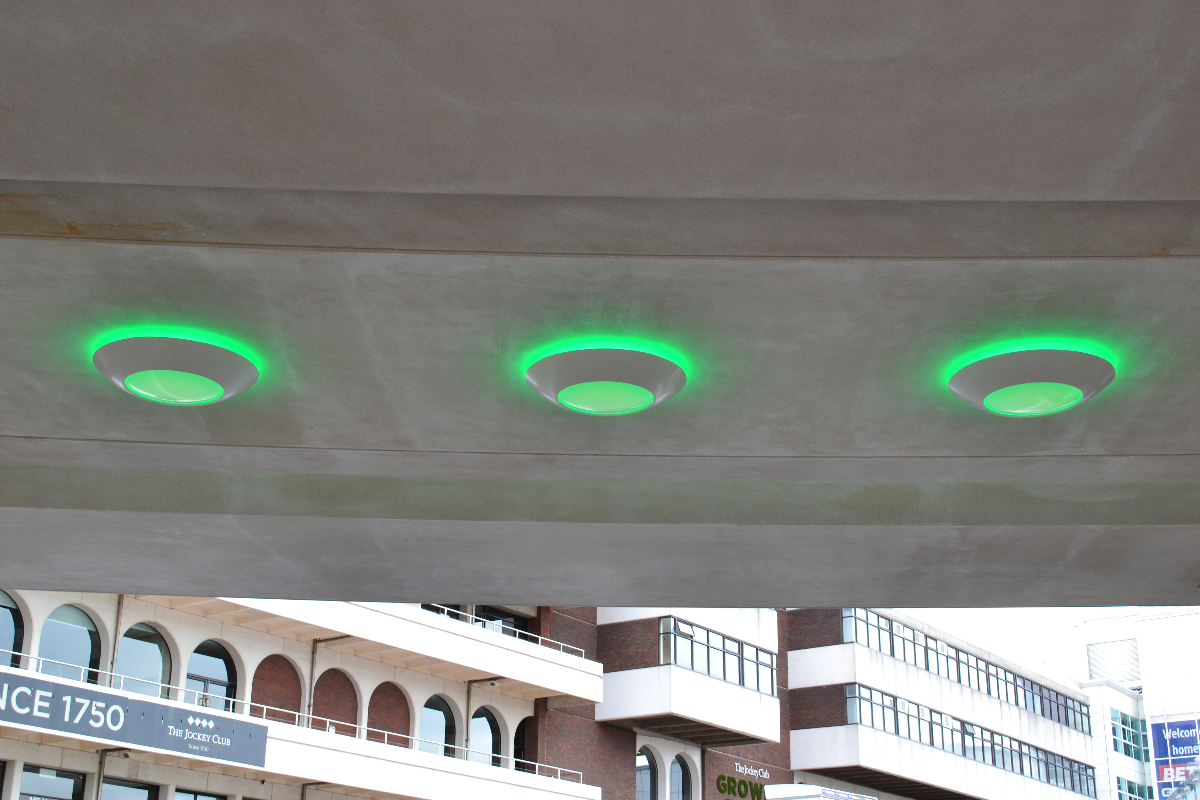

Numerous colour permutations can be achieved with the light being cast across the mounting surface from under the aluminium trim.

The central down light component is a Tridonic CLE ADV4 with an initial lumen package of 4,480 lumens at 900mA while consuming 25 circuit watts (not including the RGB LED strips which consumes another 72W with all 3 Dali channels running at 100%),The central convex diffuser is made from an LED grade high light transmission blended polycarbonate with excellent diffusing properties.

Emitted luminaire lumens are in excess of 185 lumens per circuit watt.

The Tridonic CLE ADV4is powered by a separate single channel Dali power supply (4 Dali channels in total are required).

Available in 3,000 and 4,000K with a CRI>80 and compliant to >3SDCM.

Electrostatic powder coating in RAL9010 as standard but can be supplied in any RAL colour.

Available with standard emergency and Dali monitoring emergency maintained pack.
